Part #MOT18585
Product Description

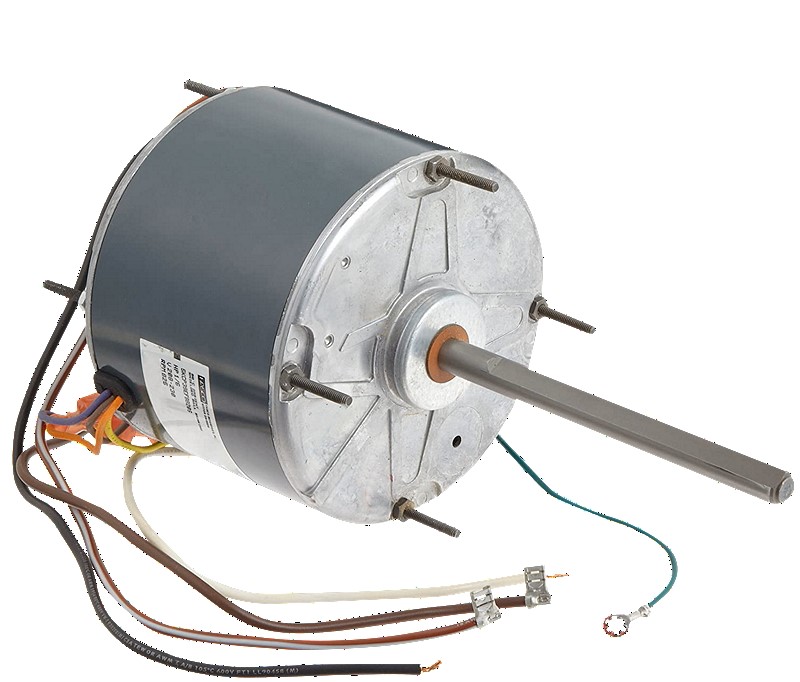

3/4 HP, 120/240 VAC 60 Hz 1-Phase, 1-Speed, 1050/1400 RPM, 48-Frame, Clockwise/Counterclockwise Rotation, OAO, Variable Speed, Continuous/Air Over Duty, Gas Furnace AC Motor
Part #MOT18585
Product Description
3/4 HP, 120/240 VAC 60 Hz 1-Phase, 1-Speed, 1050/1400 RPM, 48-Frame, Clockwise/Counterclockwise Rotation, OAO, Variable Speed, Continuous/Air Over Duty, Gas Furnace AC Motor
- Gas Furnace AC Motor; Enclosure Type OAO; Power Rating 3/4 HP; Voltage Rating 120/240 Volt AC 1-Phase; Frequency Rating 60 Hertz; Number of Speeds 1; Speed Rating 1050/1400 RPM; Service Factor 1; Efficiency 82 Percent; NEMA Frame Size 48; Insulation Class B; Weight 15.5 Pound; Type Variable Speed, Continuous/Air Over Duty; Bearing Type Ball; Design Torque Rating 48.8 Newton Meter; Overall Dimension 11.34 Inch Length x 5.66 Inch Width x 7.35 Inch Height; Rotation Type Clockwise/Counterclockwise; Temperature Rating 104 Deg F; Used On TDHMC100ACV4VBD/TUD2C080ACV42BC Gas Furnace
- Brand
AMERICAN STANDARD
Efficiency82 Percent
Enclosure TypeOAO
Frequency Rating60 Hertz
Insulation ClassB
NEMA Frame Size48
Number of Speeds1
Power Rating3/4 HP
Service Factor1
Shipping Height8.500 Inch
Shipping Length16.700 Inch
Carton Quantity1 per Pack
Shipping Weight17.400 Pound
Shipping Width8.500 Inch
Speed Rating1050/1400 RPM
Voltage Rating120/240 Volt AC 1-Phase
Weight15.5 Pound
