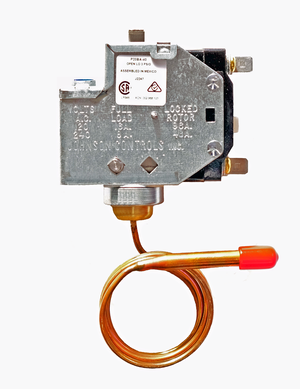

Part #P20EB2
MFG #P20EB-2C
Product Description
120/208/240/277 VAC, 16/9.2/8/7 A FLA, 96/55.2/48/42 A RLA, 100 to 425 PSI, 36" Capillary with 1/4" Soldered Tube, SPDT, Adjustable, Air Conditioner Pressure Control
Part #P20EB2
MFG #P20EB-2C
Product Description
120/208/240/277 VAC, 16/9.2/8/7 A FLA, 96/55.2/48/42 A RLA, 100 to 425 PSI, 36" Capillary with 1/4" Soldered Tube, SPDT, Adjustable, Air Conditioner Pressure Control
- Accurate Repeatability; Compact Size; Trip-Free Manual Reset; Air Conditioning High/Low Pressure Control; Refrigeration High/Low Pressure Control; Head Pressure Control
- Air Conditioner Pressure Control; Type Adjustable; Operating Pressure Rating 100 to 425 PSI; Differential Pressure Rating 75 PSI; Pressure Media Non-Corrosive Refrigerant; Contact Configuration SPDT; Contact Rating 16 Amp at 120 Volt AC/9.2 Amp at 208 Volt AC/8 Amp at 240 Volt AC/7 Amp at 277 Volt AC (FLA), 96 Amp at 120 Volt AC/55.2 Amp at 208 Volt AC/48 Amp at 240 Volt AC/42 Amp at 277 Volt AC (LRA), 125 Volt Amp at 24 Volt AC/720 Volt Amp at 120 to 277 Volt AC (Pilot Duty); Connection Type 36 Inch Capillary with 1/4 Inch Soldered Tube; Application Refrigeration System, Air Conditioner; Pressure Rating 40 PSIG Open/70 PSIG Close (Factory Setting), 250 PSIG (Bellow); Temperature Rating 140 Deg F
- Brand
Johnson Controls
Connection Type36 Inch Capillary with 1/4 Inch Soldered Tube
Contact ConfigurationSPDT
Differential Pressure Rating75 PSI
TypeAdjustable
Operating Pressure Rating100 to 425 PSI
Pressure MediaNon-Corrosive Refrigerant
