Part #P70CA400
MFG #P70CA-400C
Product Description

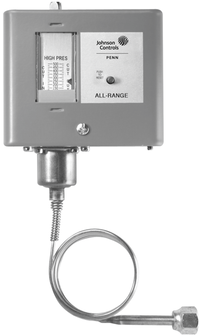

120/208/240 VAC 1-Phase, 24/18.7/17 A FLA, 144/112.2/102 A RLA, 200 to 610 PSI, Steel, 36" Capillary with 1/4" Flare Nut, SPST, NEMA 1, High Pressure, Refrigeration Pressure Control
Part #P70CA400
MFG #P70CA-400C
Product Description
120/208/240 VAC 1-Phase, 24/18.7/17 A FLA, 144/112.2/102 A RLA, 200 to 610 PSI, Steel, 36" Capillary with 1/4" Flare Nut, SPST, NEMA 1, High Pressure, Refrigeration Pressure Control
- Sight-Set Calibrated Pressure Adjustment; NEMA 1 Enclosures are Standard on Most Models; Provides Long Lasting, Rugged Protection for Internal Components; Also be Used on Other Non-Corrosive Fluid Applications
- Refrigeration Pressure Control; Type High Pressure; Operating Pressure Rating 200 to 610 PSI; Differential Pressure Rating 60 to 150 PSI; Pressure Media Non-Corrosive Fluid; Contact Configuration SPST (Open High); Contact Rating 24 Amp at 120 Volt AC/18.7 Amp at 208 Volt AC/17 Amp at 240 Volt AC 1-Phase (FLA), 144 Amp at 120 Volt AC/112.2 Amp at 208 Volt AC/102 Amp at 240 Volt AC 1-Phase (LRA), 22 Amp at 120/208/240 Volt AC 1-Phase (Non-Inductive), 125 Volt Amp at 120 to 600 Volt AC/57.5 Volt Amp at 120 to 300 Volt DC 1-Phase (Pilot Duty); Connection Type 36 Inch Capillary with 1/4 Inch Flare Nut; Enclosure NEMA 1; Enclosure Material Steel; Application High Pressure Cut-Out Control, Head Pressure Control, Condenser Fan Cycling Control on Commercial Refrigeration System and Air Conditioner; Approval UL; Pressure Rating 690 PSIG (Working); Power Rating 2 HP at 120 Volt AC/3 HP at 208/240 Volt AC 1-Phase
- Brand
Johnson Controls
ApprovalUL
Connection Type36 Inch Capillary with 1/4 Inch Flare Nut
Contact ConfigurationSPST (Open High)
Differential Pressure Rating60 to 150 PSI
EnclosureNEMA 1
Enclosure MaterialSteel
Operating Pressure Rating200 to 610 PSI
Pressure MediaNon-Corrosive Fluid
TypeHigh Pressure
