Part #P70MA18
MFG #P70MA-18C
Product Description

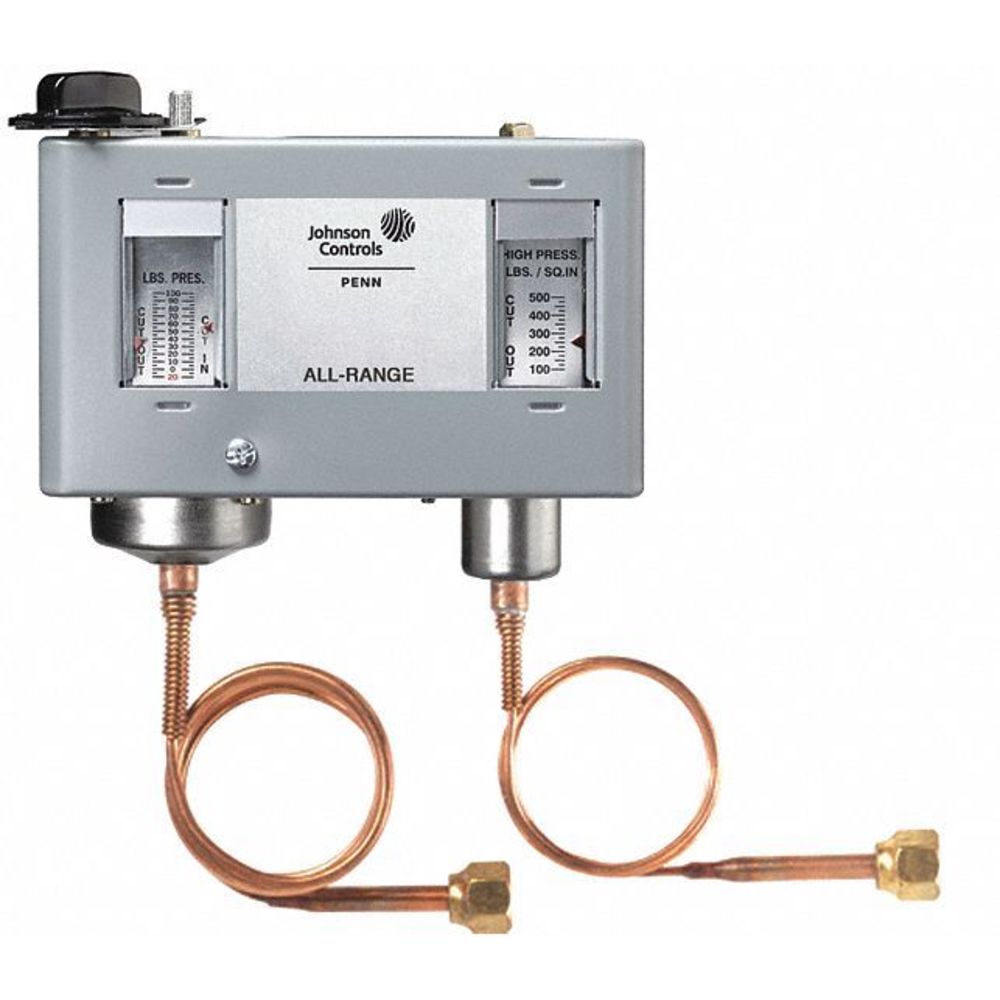

5-11/16" x 2-1/16" x 3-1/4", 120 to 600 V, 12" Hg to 80 PSI Low, 100 to 500 PSI High, SPST, Refrigeration Pressure Control
Part #P70MA18
MFG #P70MA-18C
Product Description
5-11/16" x 2-1/16" x 3-1/4", 120 to 600 V, 12" Hg to 80 PSI Low, 100 to 500 PSI High, SPST, Refrigeration Pressure Control
- Sight-Set Calibrated Pressure Adjustment; Independent High and Low Pressure Switches; Convertible High Pressure Reset-Auto Reset or Manual Reset Lockout; Dual Pressure Applications are Designed Primarily for Use as Combination High and Low Pressure Controls on Commercial Refrigeration and Air Conditioning Applications
- Refrigeration Pressure Control; Type Non-Adjustable, Dual Pressure; Operating Pressure Rating 12 Inch Hg to 80 PSI (Low), 100 to 500 PSI (High); Differential Pressure Rating 5 to 35 PSI (Low), 65 PSI (High); Contact Configuration SPST; Contact Rating 24 Amp at 120 Volt AC/18.7 Amp at 208 Volt AC/17 Amp at 240 Volt AC 1-Phase (FLA), 144 Amp at 120 Volt AC/112.2 Amp at 208 Volt AC/102 Amp at 240 Volt AC 1-Phase (LRA), 22 Amp at 120/208/240 Volt AC 1-Phase (Non-Inductive), 125 Volt Amp at 24 Volt AC/720 Volt Amp at 120 to 277 Volt AC 1-Phase (Pilot Duty); Connection Type 36 Inch Capillary with 1/4 Inch Flare Nut; Enclosure NEMA 1; Enclosure Material Steel; Application Air Conditioner, Commercial Refrigeration System; Overall Dimension 5-11/16 Inch Width x 2-1/16 Inch Depth x 3-1/4 Inch Height; Power Rating 2 HP at 120 Volt AC/3 HP at 208/240 Volt AC 1-Phase
- Brand
Johnson Controls
Connection Type36 Inch Capillary with 1/4 Inch Flare Nut
EnclosureNEMA 1
Contact ConfigurationSPST
Enclosure MaterialSteel
Differential Pressure Rating5 to 35 PSI (Low), 65 PSI (High)
TypeNon-Adjustable, Dual Pressure
Operating Pressure Rating12 Inch Hg to 80 PSI (Low), 100 to 500 PSI (High)
