Part #2202
Product Description

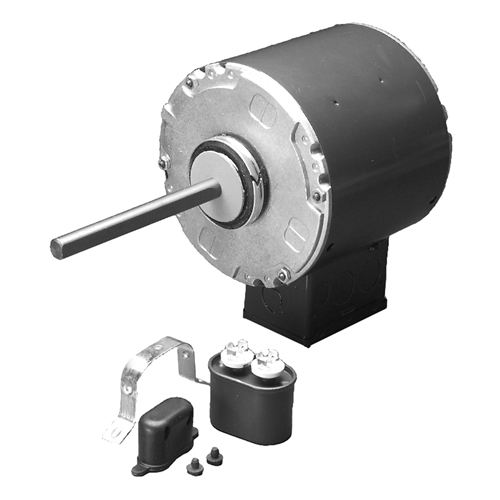

3/4 HP, 208/230/460 VAC 60 Hz 1-Phase, 4.8/2.3 A FLA, 1075 RPM, Reversible, 6-Pole, 1-Speed, 48 Frame, Class B Insulation, Hub Ring Mount, Counterclockwise Lead End Rotation, Permanent Split Capacitor, FHP, TEAO/Dual Voltage Enclosure, Condenser Fan Motor
Part #2202
Product Description
3/4 HP, 208/230/460 VAC 60 Hz 1-Phase, 4.8/2.3 A FLA, 1075 RPM, Reversible, 6-Pole, 1-Speed, 48 Frame, Class B Insulation, Hub Ring Mount, Counterclockwise Lead End Rotation, Permanent Split Capacitor, FHP, TEAO/Dual Voltage Enclosure, Condenser Fan Motor
- Brand
Nidec
Enclosure TypeTEAO, Dual Voltage
Frequency Rating60 Hertz
Insulation ClassB
Motor FLA4.8/2.3 Amp
MountingHub Ring
NEMA Frame Size48
Number of Speeds1
Power Rating3/4 HP
ReversibleYes
Service Factor1
Shipping Weight23.000 Pound
Speed Rating1075 RPM
Voltage Rating208/230/460 Volt AC 1-Phase
Weight22.13 Pound
