Part #4DCY4048B1096B
MFG #4DCY4048B1096B
Product Description

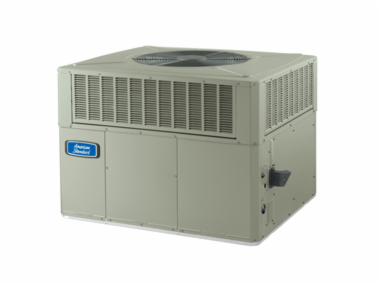

48000 BTU/Hr Cooling, 96000 BTU/Hr Heating, 208/230 VAC 60 Hz 1-Phase, 33.9 A MCA, 3.96 kW, 14 SEER/12 EER, Weather Resistant Powder Painted, Heavy Gauge Galvanized Steel, R-410A, TXV Line Connection, Dual Fuel, Premium Model Tier, Scroll Compressor, Single Packaged Convertible Gas/Electric Unit
Part #4DCY4048B1096B
MFG #4DCY4048B1096B
Product Description
48000 BTU/Hr Cooling, 96000 BTU/Hr Heating, 208/230 VAC 60 Hz 1-Phase, 33.9 A MCA, 3.96 kW, 14 SEER/12 EER, Weather Resistant Powder Painted, Heavy Gauge Galvanized Steel, R-410A, TXV Line Connection, Dual Fuel, Premium Model Tier, Scroll Compressor, Single Packaged Convertible Gas/Electric Unit
- Ultra-Low Emissions - 65% Less NOx than Standard Furnaces; Quality Compressor - State of the Art Copeland Scroll Compressor is Standard Equipment Proven, Industry Standard Components; Proven, Industry Standard Components - Easier Service and Availability; High and Low Pressure Switch - Added Compressor Protection; Aluminum Coils - Both Indoor and Outdoor All Aluminum Coils are Designed to Optimize Heat Transfer, Minimize Size and Cost and Increase Durability and Reliability; Liquid Line Filter Drier - Factory Installed at a Convenient Location for Service; Externally Accessible Service Ports - Quick Access to Refrigerant System without Disrupting Operation; Compact Footprint/Low Profile - Easy to Handle and Transport
- Single Packaged Convertible Gas/Electric Unit; Type Dual Fuel, Premium Model Tier, Scroll Compressor; Voltage Rating 208/230 Volt AC; Current Rating 33.9 Amp (MCA), 20.5 Amp RLA/109 Amp LRA (Compressor), 50 Amp (Maximum Fuse); Frequency Rating 60 Hertz; Number of Phases 1; Power Rating 3.96 Kilowatt; Cooling Capacity 48000 BTU/Hour; Enclosure Material Heavy Gauge Galvanized Steel; Enclosure Finish Weather Resistant Powder Painted; Size 60-5/16 Inch Width x 46-1/16 Inch Depth x 37-3/8 Inch Height; Weight 525 Pound; Approval ETL (Canada and US); Refrigerant Type R-410A; Refrigerant Line Connection Type TXV; Furnished Filter Type Throwaway; Heating Capacity 96000 BTU/Hour; Energy Efficiency 14 SEER, 12 EER; Air Flow Rating 1470 CFM; Sound Rating 73 Decibel; Applicable Standard AHRI 210/240
- Brand
AMERICAN STANDARD
ApprovalETL (Canada and US)
Cooling Capacity48000 BTU/Hour
Enclosure FinishWeather Resistant Powder Painted
Enclosure MaterialHeavy Gauge Galvanized Steel
Frequency Rating60 Hertz
Power Rating3.96 Kilowatt
Size60-5/16 Inch Width x 46-1/16 Inch Depth x 37-3/8 Inch Height
TypeDual Fuel, Premium Model Tier, Scroll Compressor
Voltage Rating208/230 Volt AC
Weight525 Pound
Number of Phases1
