Part #5TAM5D06AC41SA
Product Description

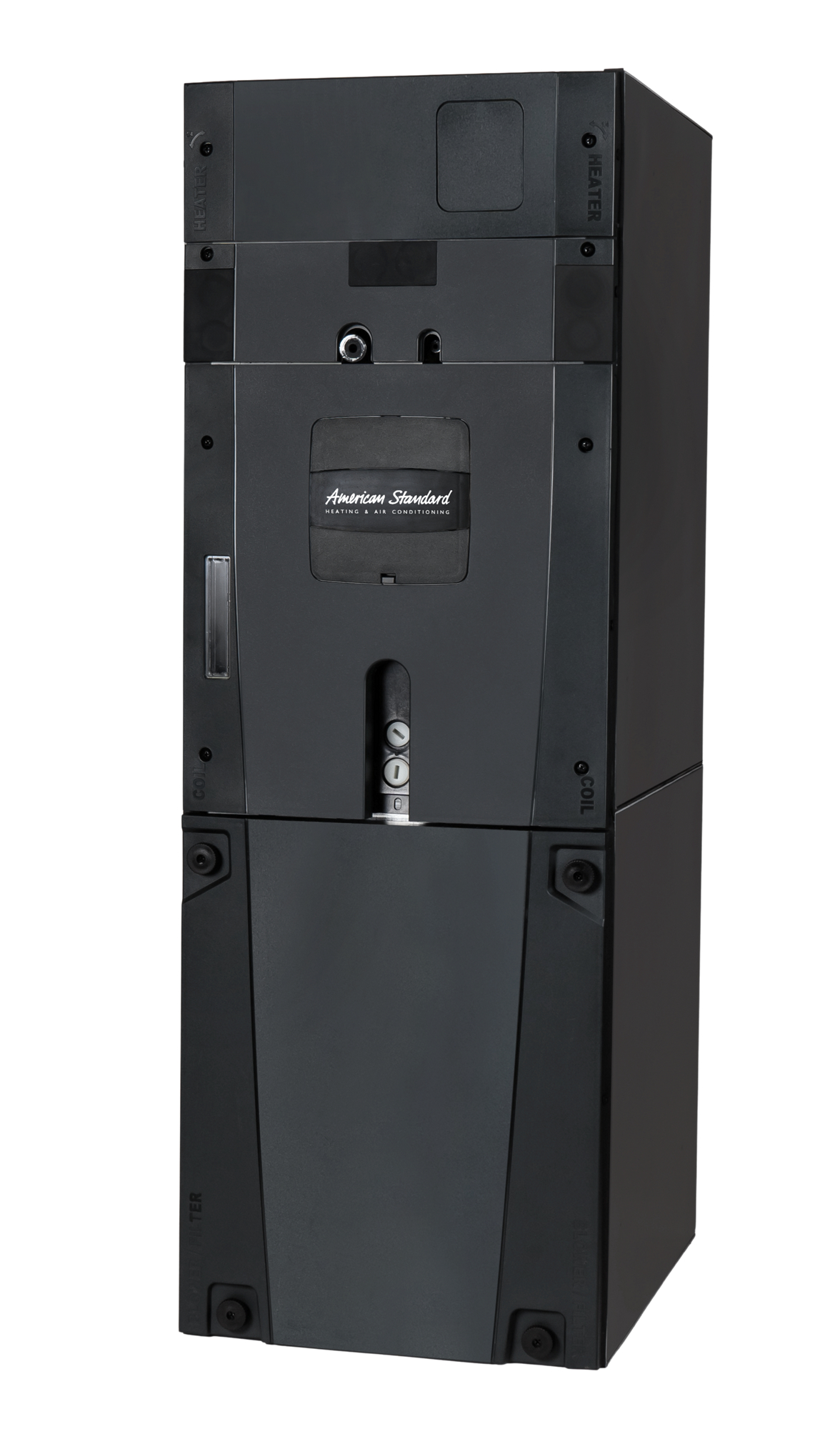

American Standard Multi-Speed Air Handler With Epoxy-Coated Coil, 5.4 A
Part #5TAM5D06AC41SA
Product Description
American Standard Multi-Speed Air Handler With Epoxy-Coated Coil, 5.4 A
- American Standard Multi-Speed Air handlers offer many features including but not limited to the following: Aluminum Coil with Integrated Slide Deck for Easy Removal, Polarized Plug connections on Blower, Blower with Integrated Slide Deck for Easy Removal, Water Proof Cabinet Design, Composite Cabinet Doors, and it is Multi-position up/down flow horizontal left/right.
- American Standard® Multi-Speed Air Handler, 3.5 to 5 ton Nominal Capacity, 42000 to 60000 Btu/hr Cooling Capacity, 42000 to 60000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 5.4 A Amperage Rating, 60 Hz Frequency Rating, 1 ph Phase, 1050 rpm Rotational Speed, 1600 cfm Rating, 4-Way Poise Configuration, Connection Type: NPT, R-454B Refrigerant Type, 15 A, 60 A Fuse Rating, 3/4 in Connection, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 22 x 20 x 1 in Filter Size, Constant Torque ECM Motor Type, 61-3/4 in H x 23-1/2 in W x 21-3/4 in D Dimensions, Direct Drive Centrifugal Blow Through Blower
- Brand
American Standard
Family5TAM5
Nominal Capacity (Tons)3.5 to 5 T
Overall Dimensions61-3/4 in H x 23-1/2 in W x 21-3/4 in D
Phase1 Phase
Refrigerant TypeR-454B
Voltage208-230 V
Filter Size22 x 20 x 1
