Part #5TAMXD07AV51DA
Product Description

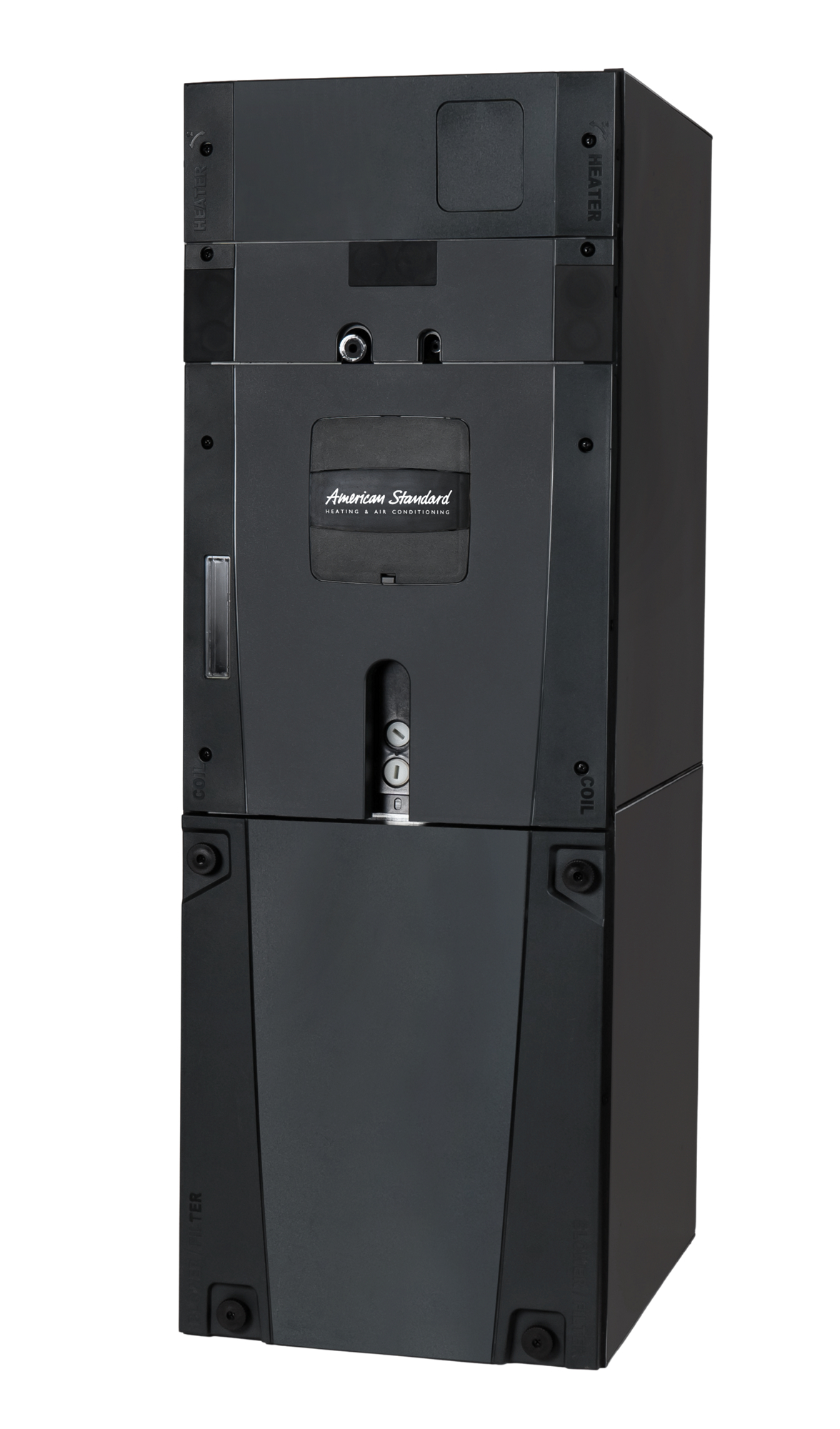

American Standard Variable Speed Air Handler, 5 ton, 42000 to 60000 Btu/hr BTU, 2000 cfm
Part #5TAMXD07AV51DA
Product Description
American Standard Variable Speed Air Handler, 5 ton, 42000 to 60000 Btu/hr BTU, 2000 cfm
- This exceptional air handler is equipped with American Standard Link communicating technology that can provide homeowners with more in-depth performance information about their HVAC system. Enjoy highly efficient and effective variable speed technology with this air handler. A variable speed blower motor works to circulate the air in exactly the way your home needs it.
- American Standard Variable Speed Air Handler, Platinum 5TAMX Series, 5TAMXD07A Model, 5 ton Nominal Capacity, 42000 to 60000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 6.9 A Amperage Rating, 60 Hz Frequency Rating, 1 ph Phase, 1050 rpm Rotational Speed, 2000 cfm Rating, Downflow, Horizontal, Upflow Configuration, Connection Type: NPT, R-454B Refrigerant Type, 3/4 in Connection, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, ECM Motor Type, Foam, 61-3/4 in H x 23-1/2 in W x 21-3/4 in D Dimensions, 11 in Dia x 10 in W Direct Drive Centrifugal Fan, EEV Flow Control Additional Information
- Brand
American Standard
Family5TAMX
Nominal Capacity (Tons)3.5 to 5 T
Overall Dimensions61-3/4 in H x 23-1/2 in W x 21-3/4 in D
Phase1 Phase
Refrigerant TypeR-454B
Voltage208-230 V
Filter Size22 x 20 x 1
