Part #93870
MFG #93870
Product Description

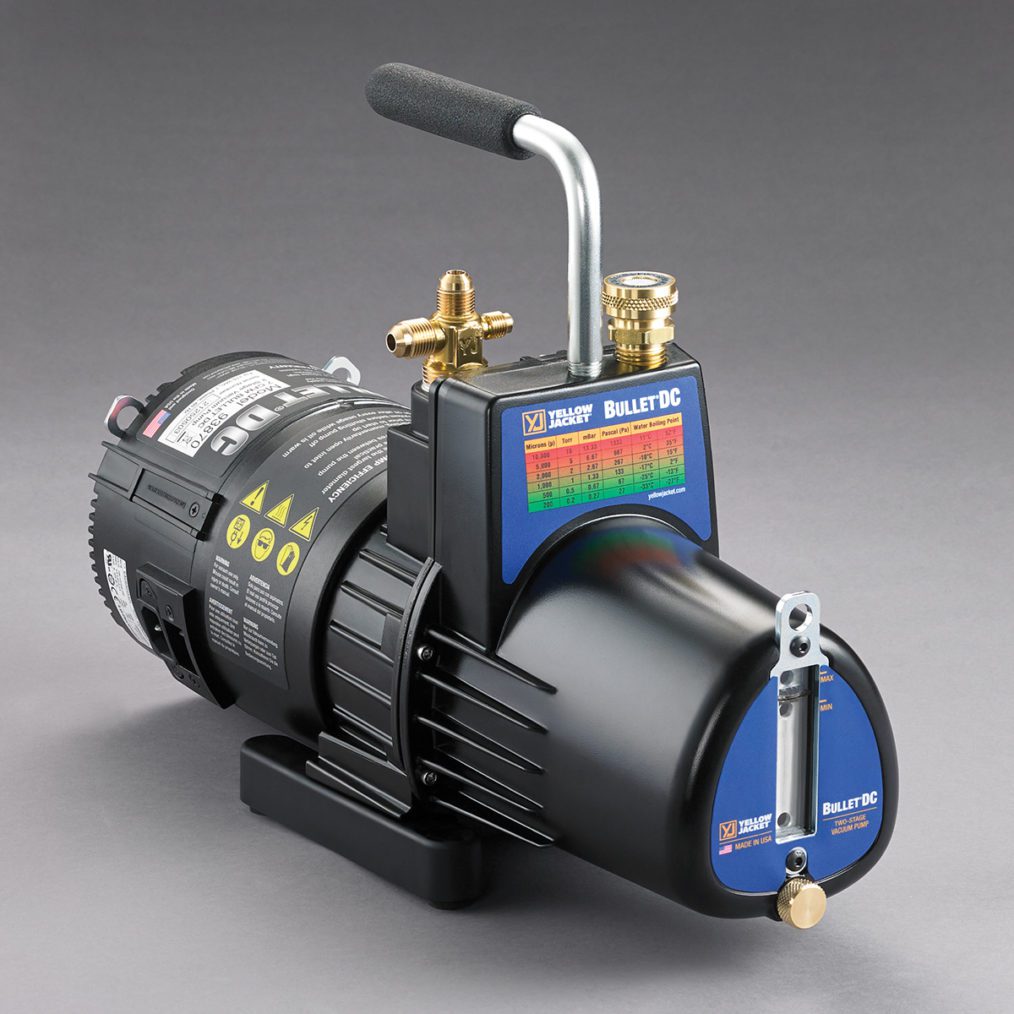

Vacuum Pump, 7 cfm, 1/2 hp, 50-60 Hz, 17.5 in L x 6 in W x 12 in H
Part #93870
MFG #93870
Product Description
Vacuum Pump, 7 cfm, 1/2 hp, 50-60 Hz, 17.5 in L x 6 in W x 12 in H
- Designed for use with A2L systems.; Built-in cooling fins to cool pump and increase performance.; Downward angled oil sump to remove contaminants usually trapped in other pump designs.; Non-sparking switch for A2L compliance.; Locking low-profile IEC connector with 9’10 in (3 meter) power cord to prevent accidental removal.; Heavy duty steel handle.; PX4 Rating – resistant to water splashes from any direction.; Two-year warranty.; Made in USA.; Built-in mount points for optional shoulder strap (sold separately – PN 92965).; Elongated oil sight glass – easier to see oil level and condition.; Internal intake check valve to help prevent oil backup into the system during a power failure.; Intake filter screen keeps damaging particles from entering the pump.; Heavy duty rotors and bearings.; Wide mouth oil reservoir port for easier, cleaner filling. Doubles as a pump exhaust- threaded to attach a garden hose for exhausting to a remote location.; Large brass oil drain for easy access to fast oil changes.; Small oil bath requires less oil.
- Brand
Ritchie Engineering Company, Inc.
Country of OriginUSA
Displacement7 cfm
HPBLDC 1/2 hp
Hz50-60 Hz
Inlet Port Size1/4 in , 3/8 in and 1/2 in
Voltage100-127 V/220-240 V
