Part #A5AC5024A1000A
Product Description

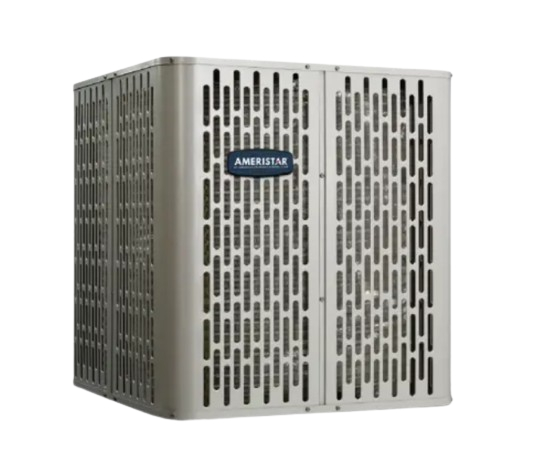

American Standard Split System Cooling Condenser, 208-230 V
Part #A5AC5024A1000A
Product Description
American Standard Split System Cooling Condenser, 208-230 V
- American Standard Split System Cooling Condenser, Model: A5AC5024A, 2 ton Nominal Capacity, 24000 Btu/hr Cooling Capacity, 208-230 V, 14 A, 1/8 hp, 825 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, 3070 cfm, 15 SEER, 1 Stages, R-454B Refrigerant, 5/16 in Liquid Line, 3/4 in Suction Line, 78 dB Sound Level, Direct Drive, 1-Row Coil, 25 A Fuse Rating, 18.75 sq-ft Face Area, 24 FPI Fins per Inch, Steel, Powder-Painted, 32-5/8 in H x 29-3/4 in W x 29-3/4 in D
- Brand
Ameristar
FamilyA5AC5
Overall Dimensions33 in H X 30 in W X 30 in D
Phase1 Phase
Refrigerant TypeR-454B
SEER15
Used On Model/BrandAmeristar
Voltage208-230 V
