Part #B11116
Product Description

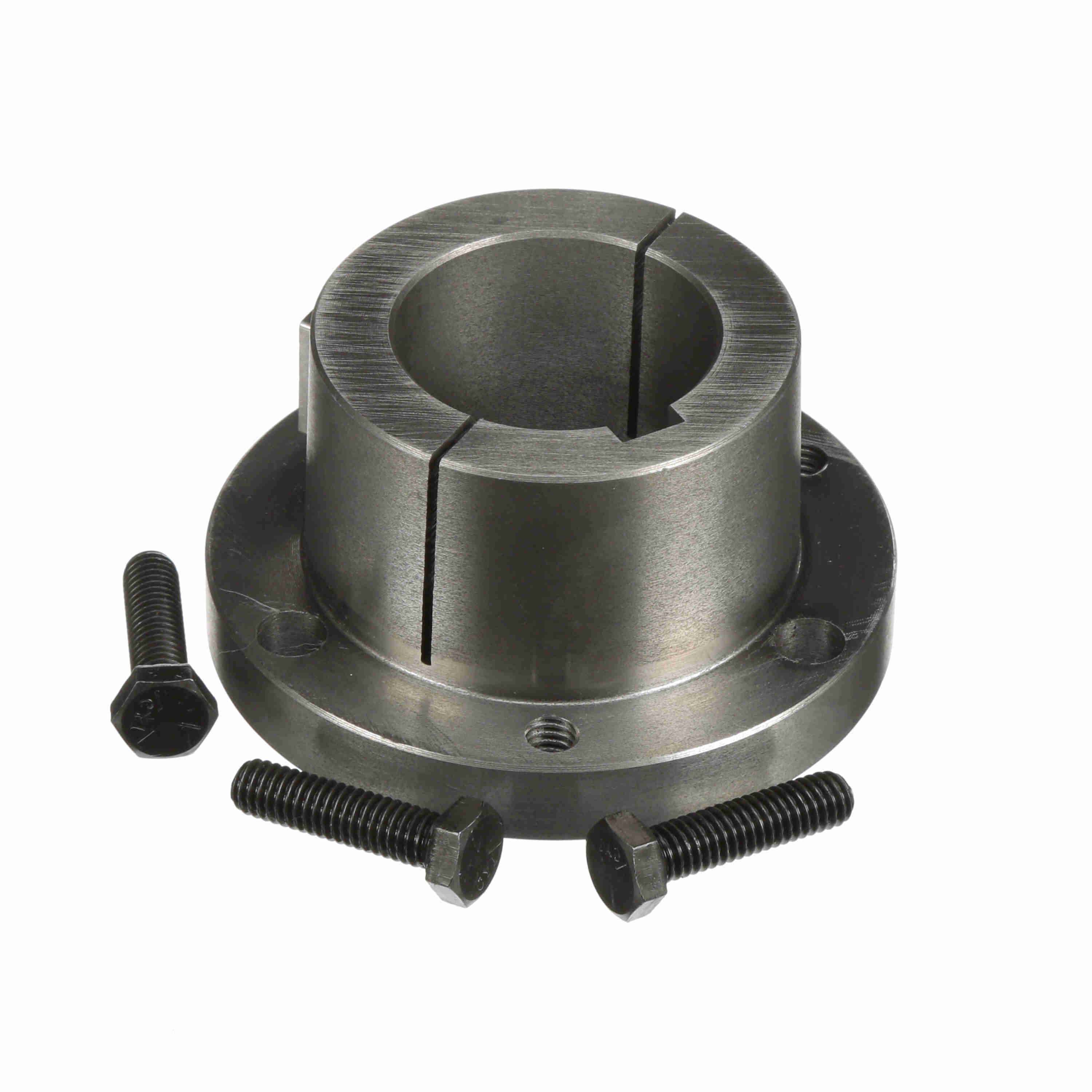

1-11/16" Bore Diameter, 3-11/16" Flange, 3/8" x 3/16" Keyway, 192 Lb-Inch Torque, Sintered Steel/Ductile Iron, Split Taper Bushing
Part #B11116
Product Description
1-11/16" Bore Diameter, 3-11/16" Flange, 3/8" x 3/16" Keyway, 192 Lb-Inch Torque, Sintered Steel/Ductile Iron, Split Taper Bushing
- Brand
Browning
Bore Diameter1-11/16 Inch
Flange Diameter3-11/16 Inch
Keyway Dimension3/8 Inch Width x 3/16 Inch Height
Locking Screw Size5/16 Inch x 1-1/4 Inch
Number of Screws3
Outside Diameter3.687 Inch
Overall Length1.937 Inch
Shipping Height2.500 Inch
Shipping Length4.400 Inch
Shipping Width4.500 Inch
Torque Rating192 Inch-Pound
