Part #C7232B1006
Product Description

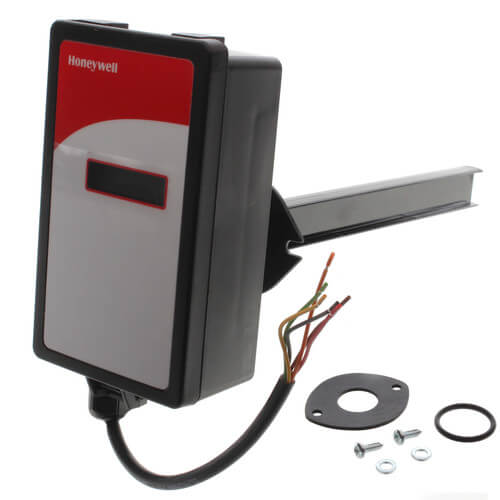

3-5/16" x 3-7/16" x 5-5/8", 24 VAC/VDC, 50/60 Hz, 600 mA, 3 W, NEMA 3, LCD, SPST, Duct Mount, Stand Alone, Non-Dispersive Infrared, Carbon Dioxide Sensor
Part #C7232B1006
Product Description
3-5/16" x 3-7/16" x 5-5/8", 24 VAC/VDC, 50/60 Hz, 600 mA, 3 W, NEMA 3, LCD, SPST, Duct Mount, Stand Alone, Non-Dispersive Infrared, Carbon Dioxide Sensor
- Brand
Honeywell Building Management Systems
Accuracy5 Percent (Full Scale)
Display TypeLCD
Electrical Connection Details(6) 20 Gauge 6 Inch Long Lead Wire
Frequency Rating50/60 Hertz
Humidity Rating0 to 95 Percent RH (Non-Condensing)
Mounting TypeDuct
Output Signal0/2 to 10 Volt DC, 0/4 to 20 Milliamp
Overall Dimensions3-5/16 Inch Width x 3-7/16 Inch Depth x 5-5/8 Inch Height
Switching ActionSPST
Temperature Rating32 to 122 Deg F
TypeStand Alone, Non-Dispersive Infrared
Used withCo2 Based Ventilation Control
Voltage Rating24 Volt AC/DC
