Part #CCG1824PA1P
MFG #CCG1824PA1P
Product Description

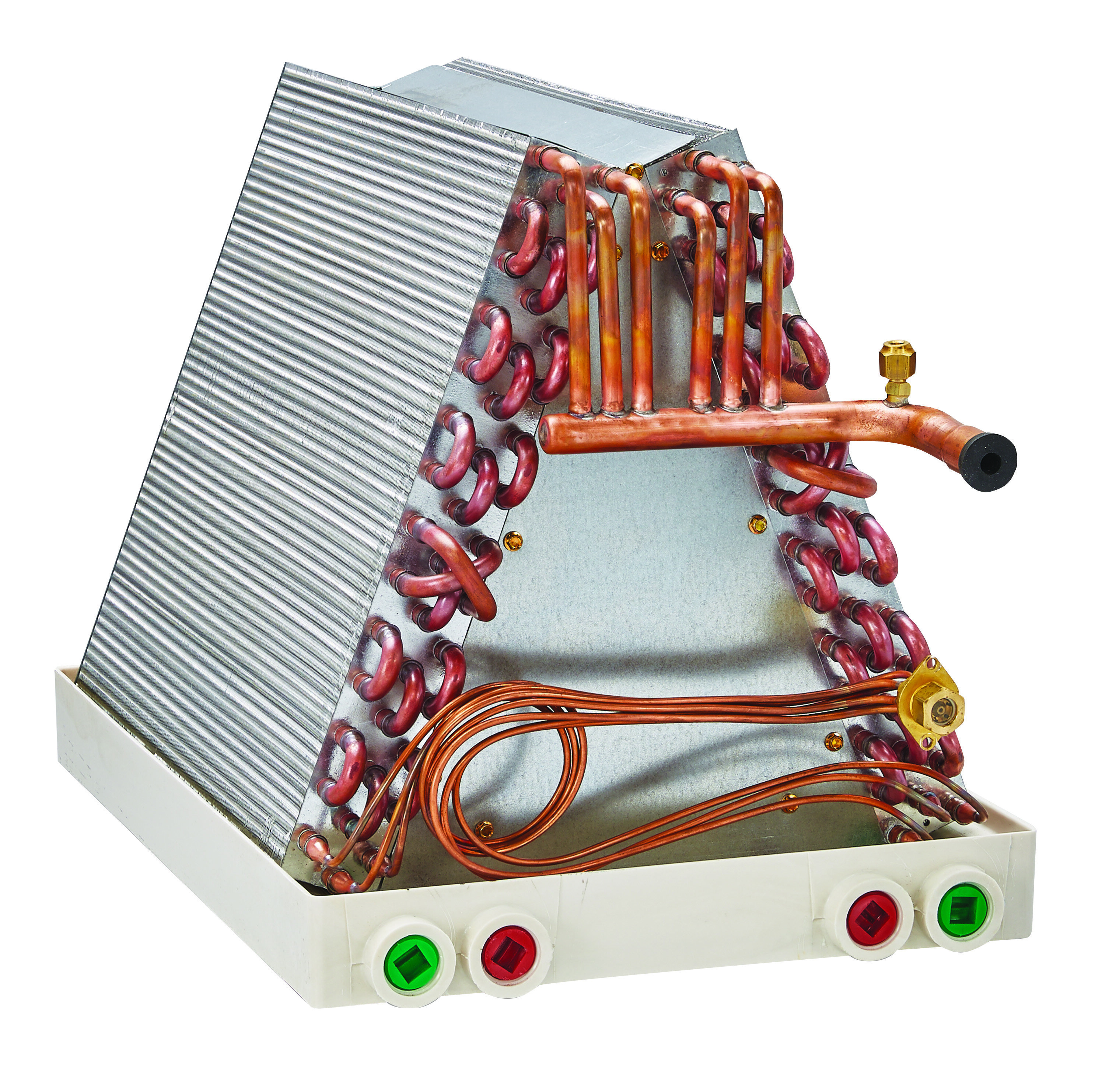

14" x 19.5" x 13", 2 Ton, R-22/R-410A, 3/8" Liquid Line, 3/4" Suction Line, Rifled Copper Tubing, Enhanced Aluminum Fin, Upflow/Downflow, Air Conditioner Uncased Coil
Part #CCG1824PA1P
MFG #CCG1824PA1P
Product Description
14" x 19.5" x 13", 2 Ton, R-22/R-410A, 3/8" Liquid Line, 3/4" Suction Line, Rifled Copper Tubing, Enhanced Aluminum Fin, Upflow/Downflow, Air Conditioner Uncased Coil
- Rifled Copper Tubing, Enhanced Aluminum Fins; Immersion Tested at 500 PSI, then Nitrogen Pressurized and Sealed; Right Hand Refrigerant and Plumbing Connections; Externally Mounted Flowrater Body with Schrader Valve for Hiss Testing; Heavy Duty Plastic Drain Pans on Most Models; Upflow without Field Model Modification; AHRI Certified
- Air Conditioner Uncased Coil; Item Uncased Coil, Upflow/Downflow; Size 14 Inch Width x 19.5 Inch Depth x 13 Inch Height; Material Rifled Copper (Tubing), Enhanced Aluminum (Fin); Used On Item Air Conditioner, Heat Pump, Furnace; Applicable Standard ETL (Canada and US), UL (Canada and US), AHRI 210/240; Refrigerant Type R-22/R-410A; Furnace Coil Width 14 Inch; Nominal Capacity 2 Ton; Connection Size 3/8 Inch (Liquid Line), 3/4 Inch (Suction Line); Number of Tube Rows 3; Metering Device Piston/Flowrator
- Brand
Comfort-Aire
ItemUncased Coil, Upflow/Downflow
Size14 Inch Width x 19.5 Inch Depth x 13 Inch Height
Used On ItemAir Conditioner, Heat Pump, Furnace
