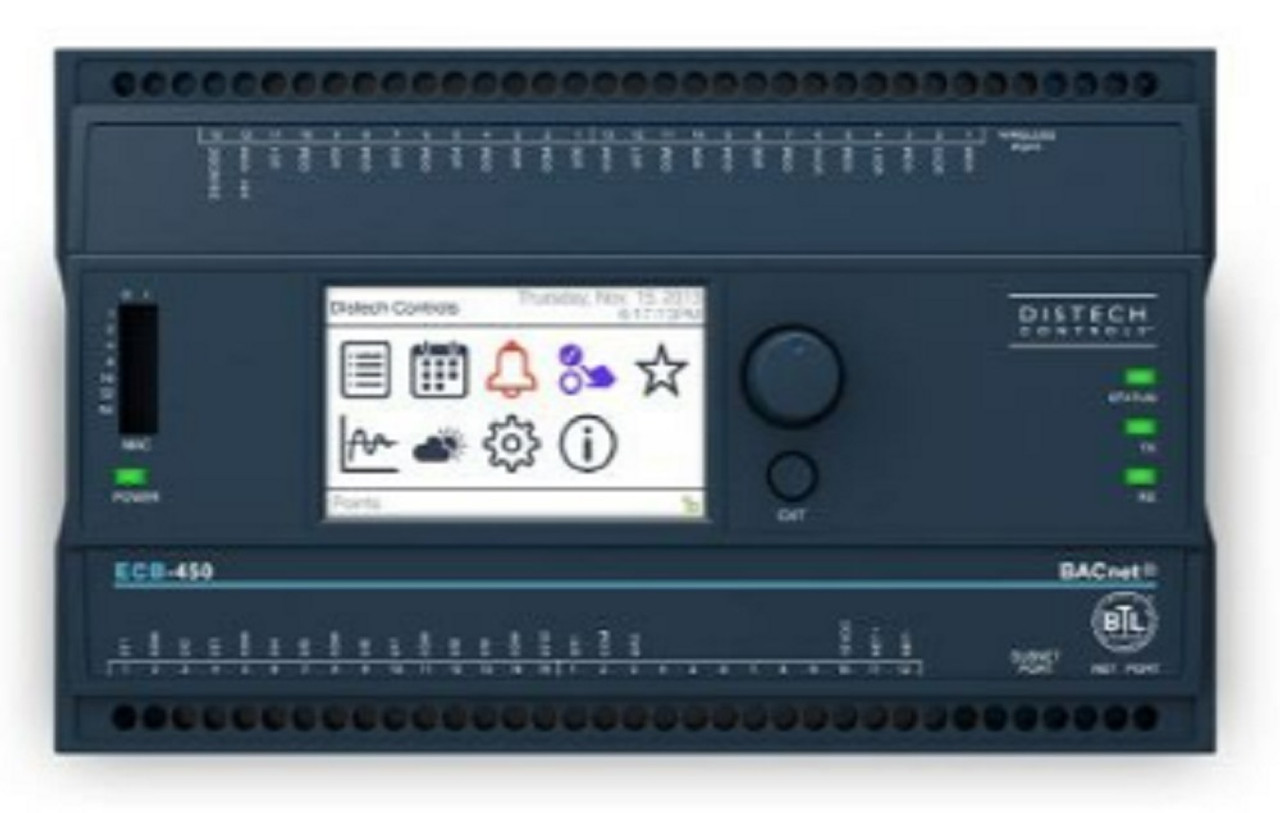

Part #CDIB450X00
MFG #ECB-450
Product Description
7.7" x 2.03" x 4.7", 24 VAC 50/60 Hz/24 VDC Input, 15 VDC, ABS, 12-Universal Input, 12-Universal Output, Software Configurable, Microprocessor Based, Programmable Controller with Integral Real Time Clock
Part #CDIB450X00
MFG #ECB-450
Product Description
7.7" x 2.03" x 4.7", 24 VAC 50/60 Hz/24 VDC Input, 15 VDC, ABS, 12-Universal Input, 12-Universal Output, Software Configurable, Microprocessor Based, Programmable Controller with Integral Real Time Clock
- Flexible Inputs and Outputs Support all Industry Standard HVAC Unitary Applications; Rugged Hardware Inputs and Outputs Eliminate the Need for External Protection Equipment; Models Available with HOA Switches and Potentiometers are Ideal for Equipment Testing or Commissioning; Open to Wireless™ Ready, Supporting a Wide Variety of Wireless Sensors and Switches and Helping to Reduce Installation Costs; Supports the Allure™ Series Communicating Sensors, Providing Intelligent Sensing and Environmental Zone Control
- Programmable Controller; Type Microprocessor Based; Number of Inputs 12-Universal; Number of Outputs 12-Universal; Input Type Universal, Software Configurable; Output Type Universal, Software Configurable; Electrical Rating 24 Volt AC 50/60 Hertz/24 Volt DC (Input), 15 Volt DC; Operating Temperature 32 to 122 Deg F; Size 7.7 Inch Width x 2.03 Inch Depth x 4.7 Inch Height; Application Air Handling Unit, Chiller, Boiler, Cooling Tower, Central Plant; Approval UL (Canada and US), UL 916, CE; Connection 24 Point; Communication Type BACnet MS/TP (Bus), B-AAC (BACnet Profile); Communication Cable Type RS-485 Cat 5e, (8) Conductor Twisted Pair; Connector Type RJ-45; RAM Memory 96 Kilobyte; Housing Material ABS Plastic; Relative Humidity 0 to 90 Percent (Non-Condensing); Includes Integral Real Time Clock; Applicable Standard FCC, BTL
- Approval
UL (Canada and US), UL 916, CE
Electrical Rating24 Volt AC 50/60 Hertz/24 Volt DC (Input), 15 Volt DC
Input TypeUniversal, Software Configurable
Number of Inputs12-Universal
Number of Outputs12-Universal
Operating Temperature32 to 122 Deg F
Output TypeUniversal, Software Configurable
Shipping Weight1.170 Pound
Size7.7 Inch Width x 2.03 Inch Depth x 4.7 Inch Height
TypeMicroprocessor Based
