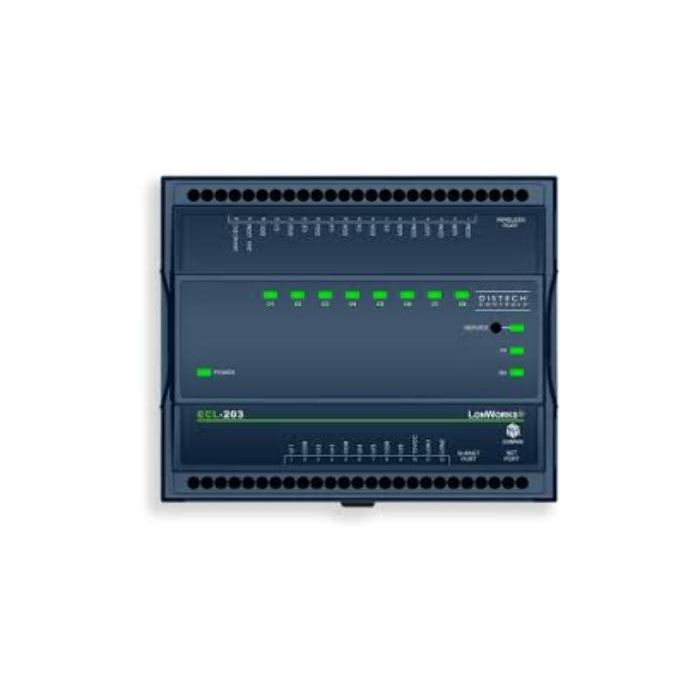

Part #CDIL203X00
MFG #ECL-203
Product Description
5.7" x 2.03" x 4.7", 24 VAC 50/60 Hz/24 VDC Input, 15 VDC, ABS, 6-Universal Input, 3-Universal/5-Digital Output, Software Configurable, Microprocessor Based, Programmable Controller with Integral Real Time Clock
Part #CDIL203X00
MFG #ECL-203
Product Description
5.7" x 2.03" x 4.7", 24 VAC 50/60 Hz/24 VDC Input, 15 VDC, ABS, 6-Universal Input, 3-Universal/5-Digital Output, Software Configurable, Microprocessor Based, Programmable Controller with Integral Real Time Clock
- Flexible Inputs and Outputs Support All Industry-Standard HVAC Unitary Applications; Rugged Hardware Inputs and Outputs Eliminate the Need for External Protection Equipment; Models Available with HOA Switches and Potentiometers are Ideal for Equipment Testing or Commissioning; Supports EC-GFX Program, Making Building Automation System Programming Effortless; Open to Wireless™ Ready, Supporting a Wide Variety of Wireless Sensors and Switches and Helping to Reduce Installation Costs; Supports the Allure™ Series Communicating Sensors, Providing Intelligent Sensing and Environmental Zone Control
- Programmable Controller; Type Microprocessor Based; Number of Inputs 6-Universal; Number of Outputs 3-Universal, 5-Digital; Input Type Universal, Software Configurable; Output Type Universal, Digital; Electrical Rating 24 Volt AC 50/60 Hertz/24 Volt DC (Input), 15 Volt DC; Operating Temperature 32 to 122 Deg F; Size 5.7 Inch Width x 2.03 Inch Depth x 4.7 Inch Height; Application Rooftop Unit, Fan Coil Unit, Unit Ventilator, Heat Pump Unit, Air Handling Unit, and Chilled Ceiling; Approval UL (Canada and US), UL 916, CE; Connection 14 Point; Communication Type LonTalk Protocol; Communication Cable Type RS-485 Cat 5e, (8) Conductor Twisted Pair; Connector Type RJ-45; RAM Memory 64 Kilobyte; Housing Material ABS Plastic; Includes Integral Real Time Clock; Applicable Standard FCC
- Approval
UL (Canada and US), UL 916, CE
Electrical Rating24 Volt AC 50/60 Hertz/24 Volt DC (Input), 15 Volt DC
Input TypeUniversal, Software Configurable
Number of Inputs6-Universal
Number of Outputs3-Universal, 5-Digital
Operating Temperature32 to 122 Deg F
Output TypeUniversal, Digital
Shipping Weight0.970 Pound
Size5.7 Inch Width x 2.03 Inch Depth x 4.7 Inch Height
TypeMicroprocessor Based
