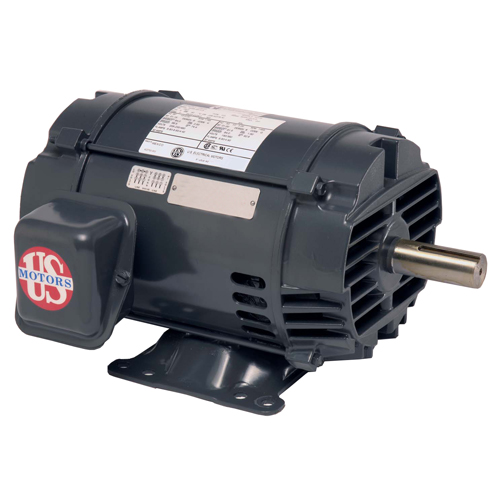

Part #D10P2D
Product Description
10 HP, 208/230/460 VAC 50/60 Hz 3-Phase, 26.3 to 23.8/11.9 A FLA, 1800 RPM, Reversible, 91.7% Efficiency, 4-Pole, 1-Speed, 215 Rolled Steel Frame, Class F Insulation, Horizontal Footed Mount, Dripproof, Premium Efficient, ODP Enclosure, General Purpose Motor
Part #D10P2D
Product Description
10 HP, 208/230/460 VAC 50/60 Hz 3-Phase, 26.3 to 23.8/11.9 A FLA, 1800 RPM, Reversible, 91.7% Efficiency, 4-Pole, 1-Speed, 215 Rolled Steel Frame, Class F Insulation, Horizontal Footed Mount, Dripproof, Premium Efficient, ODP Enclosure, General Purpose Motor
- Brand
Nidec
Efficiency91.7 Percent
Enclosure TypeODP
Frame MaterialRolled Steel
Frequency Rating50/60 Hertz
Insulation ClassF
Motor FLA26.3 to 23.8/11.9 Amp
MountingHorizontal Footed
NEMA Frame Size215
Number of Speeds1
Power Rating10 HP
ReversibleYes
Service Factor1.15
Shipping Weight135.000 Pound
Speed Rating1800 RPM
Voltage Rating208/230/460 Volt AC 3-Phase
Weight135 Pound
