Part #EBC036A4E0B0000
MFG #EBC036A4E0B0000
Product Description

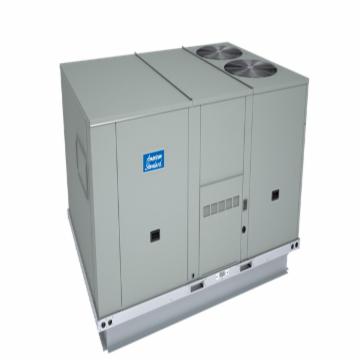

3 Ton Cooling, 460 VAC 60 Hz 3-Phase, 15 A MCA Fan Motor/0.7 A FLA Condenser Fan Motor, 14 SEER/12 EER, Zinc Coated/Weather Resistant Baked Enamel, Heavy Gauge Galvanized Steel, R-410A, Horizontal, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor, Packaged Rooftop Cooling/Electric Heat Air Conditioner
Part #EBC036A4E0B0000
MFG #EBC036A4E0B0000
Product Description
3 Ton Cooling, 460 VAC 60 Hz 3-Phase, 15 A MCA Fan Motor/0.7 A FLA Condenser Fan Motor, 14 SEER/12 EER, Zinc Coated/Weather Resistant Baked Enamel, Heavy Gauge Galvanized Steel, R-410A, Horizontal, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor, Packaged Rooftop Cooling/Electric Heat Air Conditioner
- Broad Light Commercial Rooftop Offering from 3 to 25 Tons; Designed for Easy Like for Like Replacement; Simple, Hassle Free Installation Reliable, Efficient Performance and a Great Value; Meets DOE 2023 Efficiency Requirements; Colored and Numbered Wiring - Save Time and Money Tracing Wires and Diagnosing the Unit; This 24-Volt Control Includes the Control Transformer and Contactor Pressure Lugs for Power Wiring; A Bi-Metal Element Discharge Line Thermostats Installed as a Standard Feature on the Discharge Line of Each System; This Standard Feature Provides Extra Protection to the Compressors Against High Discharge Temperatures in Case of Loss of Charge, Extremely High Ambient and Other Conditions Which Could Drive the Discharge Temperature Higher; Low Voltage Terminal Board is Mounted Outside the Main Electrical Control Cabinet; It is Extremely Easy to Locate and Attach the Thermostat Control Wiring and Also Test Operation of all Unit Functions, this is Another Cost and Time Saving Installation Feature; With the Quick-Adjust Slider Plate, the Belt and Sheaves Can be Quickly Adjusted without Moving the Mounted Fan Motor, this Results in Reduced Time Spent on Routine Maintenance; Easy to Install, Service and Maintain
- Packaged Rooftop Cooling/Electric Heat Air Conditioner; Type Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor; Voltage Rating 460 Volt AC; Current Rating 15 Amp MCA/15 Amp MCB (Indoor Fan Motor), 2.5 Amp FLA/12.3 Amp LRA (Evaporator Fan Motor), 0.7 Amp FLA/2.3 Amp LRA (Condenser Fan Motor), 5.8 Amp RLA/38 Amp LRA (Compressor Motor); Frequency Rating 60 Hertz; Number of Phases 3; Power Rating 4.1 HP (Compressor Motor), 0.33 HP (Condenser Fan Motor), 1 HP (Evaporator Fan Motor); Cooling Capacity 3 Ton; Temperature Control Type Thermostat; Connection Type Terminal Block; Operating Temperature 45 to 125 Deg F; Installation Horizontal; Enclosure Material Heavy Gauge Galvanized Steel; Enclosure Finish Zinc Coated/Weather Resistant Baked Enamel; Size 76.814 Inch Length x 47.934 Inch Width x 42.558 Inch Height; Weight 473 Pound; Approval UL (Canada and US); Refrigerant Type R-410A; Furnished Filter Type Throwaway; Coil Type Microchannel; Energy Efficiency 14 SEER, 12 EER; Air Flow Rating 1200 CFM (Nominal); Sound Rating 79 Decibel; Applicable Standard ASHRAE 90.1, AHRI 210/240
- Brand
AMERICAN STANDARD
ApprovalUL (Canada and US)
Connection TypeTerminal Block
Cooling Capacity3 Ton
Enclosure FinishZinc Coated/Weather Resistant Baked Enamel
Enclosure MaterialHeavy Gauge Galvanized Steel
Frequency Rating60 Hertz
InstallationHorizontal
Operating Temperature45 to 125 Deg F
Power Rating4.1 HP (Compressor Motor), 0.33 HP (Condenser Fan Motor), 1 HP (Evaporator Fan Motor)
Size76.814 Inch Length x 47.934 Inch Width x 42.558 Inch Height
Temperature Control TypeThermostat
TypeConvertible Air Flow, Electromechanical Control Unit, Scroll Compressor
Voltage Rating460 Volt AC
Weight473 Pound
Number of Phases3
