Part #ECC090A4E0A3YXA
MFG #ECC090A4E0A3YXA
Product Description

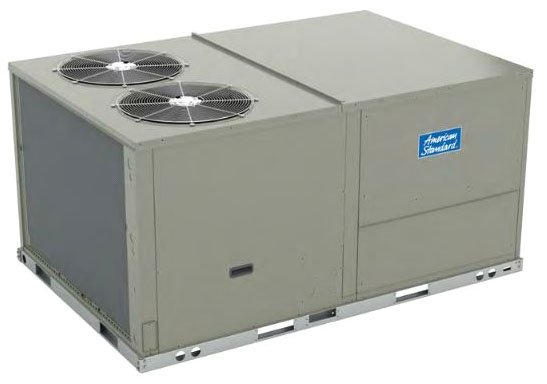

7.5 Ton Cooling, 460 VAC 60 Hz 3-Phase, 20 A MCA, 2 HP, 11.2 EER/14.8 IEER, 3200 CFM, Galvanized Steel, R-410A, Direct Drive, Convertible Air Flow, Electromechanical Control, Scroll Compressor, Packaged Rooftop Air Conditioner
Part #ECC090A4E0A3YXA
MFG #ECC090A4E0A3YXA
Product Description
7.5 Ton Cooling, 460 VAC 60 Hz 3-Phase, 20 A MCA, 2 HP, 11.2 EER/14.8 IEER, 3200 CFM, Galvanized Steel, R-410A, Direct Drive, Convertible Air Flow, Electromechanical Control, Scroll Compressor, Packaged Rooftop Air Conditioner
- Foundation™ has Features and Benefits that Make it First Class in the Light Commercial Rooftop Market, Designed with Input from Field Contractors and Technicians its Convertible Air Flow and Ease of Installation are Outstanding
- Packaged Rooftop Air Conditioner; Type Direct Drive, Convertible Air Flow, Electromechanical Control, Scroll Compressor; Voltage Rating 460 Volt AC; Current Rating 20 Amp MCA/25 Amp MOCP (Indoor Fan Motor); Frequency Rating 60 Hertz; Number of Phases 3; Power Rating 2 HP (Indoor Fan Motor), 1/3 HP (Outdoor Fan Motor), 7.68 Kilowatt (System Power); Cooling Capacity 7.5 Ton; Temperature Control Type Thermostat; Connection Type Terminal Block; Operating Temperature 95 Deg F (Outdoor Air), 80 Deg F (Dry Bulb), 67 Deg F (Wet Bulb); Enclosure Material Heavy Gauge Galvanized Steel; Enclosure Finish Zinc Coated/Weather Resistant Baked Enamel; Size 88-7/16 Inch Length x 58-7/8 Inch Width x 48-3/4 Inch Height; Weight 904 Pound; Approval UL (Canada and US), ETL; Refrigerant Type R-410A; Energy Efficiency Ratio 11.2 EER, 14.8 IEER; Air Flow Rating 3200 CFM; Sound Rating 8.2 Decibel; Speed Rating 1725 RPM (Indoor Fan Motor), 960 RPM (Outdoor Fan Motor); Application Light Commercial; Applicable Standard AHRI, ASHRAE 90.1
- Brand
American Standard Heating & Air Conditioning
ApprovalUL (Canada and US), ETL
Connection TypeTerminal Block
Cooling Capacity7.5 Ton
Enclosure FinishZinc Coated/Weather Resistant Baked Enamel
Enclosure MaterialHeavy Gauge Galvanized Steel
Frequency Rating60 Hertz
Number of Phases3
Operating Temperature95 Deg F (Outdoor Air), 80 Deg F (Dry Bulb), 67 Deg F (Wet Bulb)
Power Rating2 HP (Indoor Fan Motor), 1/3 HP (Outdoor Fan Motor), 7.68 Kilowatt (System Power)
Size88-7/16 Inch Length x 58-7/8 Inch Width x 48-3/4 Inch Height
Temperature Control TypeThermostat
TypeDirect Drive, Convertible Air Flow, Electromechanical Control, Scroll Compressor
Voltage Rating460 Volt AC
Weight904 Pound
