Part #GBC048A4ELB0000
MFG #GBC048A4ELB0000
Product Description

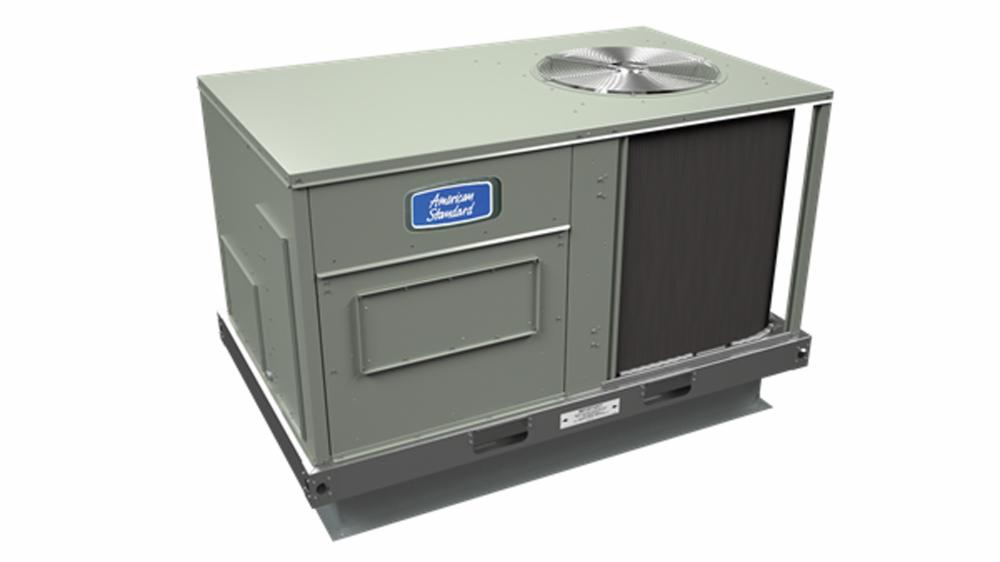

4 Ton Cooling, 460 VAC 60 Hz 3-Phase, 11 A MCA/0.7 A FLA Fan Motor, 4.13 kW, 12 EER, Zinc Coated/Weather Resistant Baked Enamel, Heavy Gauge Galvanized Steel, R-410A, Low Gas Heat, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor, Packaged Rooftop Air Conditioner
Part #GBC048A4ELB0000
MFG #GBC048A4ELB0000
Product Description
4 Ton Cooling, 460 VAC 60 Hz 3-Phase, 11 A MCA/0.7 A FLA Fan Motor, 4.13 kW, 12 EER, Zinc Coated/Weather Resistant Baked Enamel, Heavy Gauge Galvanized Steel, R-410A, Low Gas Heat, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor, Packaged Rooftop Air Conditioner
- Broad Light Commercial Rooftop Offering from 3 to 25 Tons; Designed for Easy Like for Like Replacement; Simple, Hassle Free Installation; Reliable, Efficient Performance and a Great Value; Meets DOE 2023 Efficiency Requirements; Colored and Numbered Wiring - Save Time and Money Tracing Wires and Diagnosing the Unit; This 24-Volt Control Includes the Control Transformer and Contactor Pressure Lugs for Power Wiring; A Bi-Metal Element Discharge Line Thermostats Installed as a Standard Feature on the Discharge Line of Each System; This Standard Feature Provides Extra Protection to the Compressors Against High Discharge Temperatures in Case of Loss of Charge, Extremely High Ambient and Other Conditions Which Could Drive the Discharge Temperature Higher; Low Voltage Terminal Board is Mounted Outside the Main Electrical Control Cabinet; It is Extremely Easy to Locate and Attach the Thermostat Control Wiring and Also Test Operation of all Unit Functions, this is Another Cost and Time Saving Installation Feature; With the Quick-Adjust Slider Plate, the Belt and Sheaves Can be Quickly Adjusted without Moving the Mounted Fan Motor, this Results in Reduced Time Spent on Routine Maintenance; Easy to Install, Service and Maintain
- Packaged Rooftop Air Conditioner; Type Low Gas Heat, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor; Voltage Rating 460 Volt AC; Current Rating 11 Amp MCA/15 Amp MCB (Indoor Fan Motor), 2.5 Amp FLA/12.3 Amp LRA (Evaporator Fan Motor), 0.7 Amp FLA/2.3 Amp LRA (Condenser Fan Motor), 6.2 Amp RLA/41 Amp LRA (Compressor Motor); Frequency Rating 60 Hertz; Number of Phases 3; Power Rating 4.13 Kilowatt, 5.44 HP (Compressor Motor), 0.33 HP (Condenser Fan Motor), 1 HP (Evaporator Fan Motor); Cooling Capacity 4 Ton; Temperature Control Type Thermostat; Connection Type Low Voltage Terminal; Operating Temperature 45 to 125 Deg F; Enclosure Material Heavy Gauge Galvanized Steel; Enclosure Finish Zinc Coated/Weather Resistant Baked Enamel; Size 76.814 Inch Length x 47.934 Inch Width x 42.558 Inch Height; Weight 566 Pound; Approval UL (Canada and US); Refrigerant Type R-410A; Refrigerant Control Type TXV; Motor Type 1100 RPM Standard; Coil Type Microchannel; Energy Efficiency 12 EER; Air Flow Rating 1600 CFM; Furnished Filter Type Throwaway; Number of Rows 2; Fins per Inch 16; Number of Compressor 1; Noise Level 80 Decibel; Applicable Standard ASHRAE 90.1, AHRI 210/240, ANSI Z21.47
- Brand
AMERICAN STANDARD
ApprovalUL (Canada and US)
Connection TypeLow Voltage Terminal
Cooling Capacity4 Ton
Enclosure FinishZinc Coated/Weather Resistant Baked Enamel
Enclosure MaterialHeavy Gauge Galvanized Steel
Frequency Rating60 Hertz
Operating Temperature45 to 125 Deg F
Power Rating4.13 Kilowatt, 5.44 HP (Compressor Motor), 0.33 HP (Condenser Fan Motor), 1 HP (Evaporator Fan Motor)
Size76.814 Inch Length x 47.934 Inch Width x 42.558 Inch Height
Temperature Control TypeThermostat
TypeLow Gas Heat, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor
Voltage Rating460 Volt AC
Weight566 Pound
Number of Phases3
