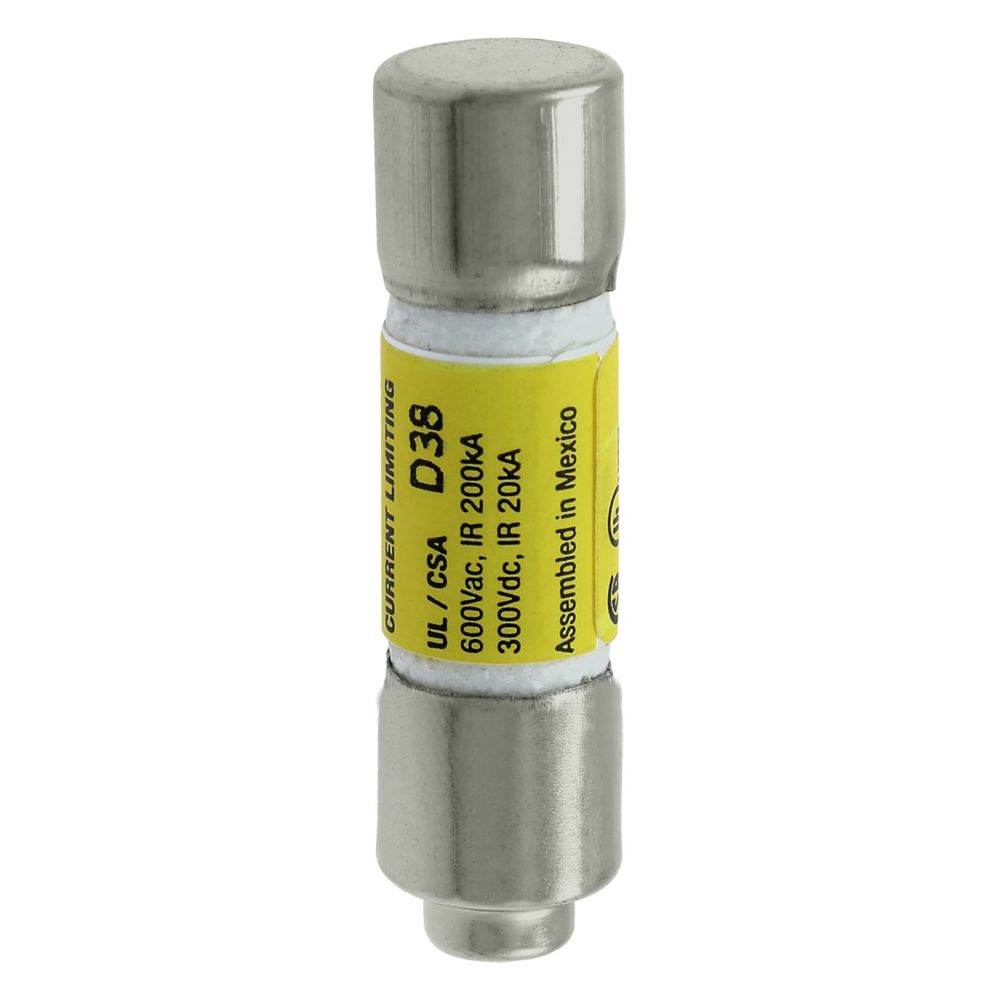

Part #LPCC30
MFG #LP-CC-30
Product Description
Bussmann series Ultimate protection Low-Peak Class CC current-limiting, time-delay fuses. Timedelay – 12 seconds (minimum) at 200% of rated current
Part #LPCC30
MFG #LP-CC-30
Product Description
Bussmann series Ultimate protection Low-Peak Class CC current-limiting, time-delay fuses. Timedelay – 12 seconds (minimum) at 200% of rated current
- 200kA interrupting rating complies with NEC® Section 110.9 for today’s large capacity systems. : Fast short-circuit protection and dual-element, time-delay performance provide ultimate protection. : Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses. : Consistent 2:1 amp rating ratios for all LowPeak fuses make selective coordination easy. : Time-delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under fault conditions provides a high degree of current limitation. : Current-limitation protects downstream components against damaging thermal and magnetic effects of fault currents. : A superior, all-purpose, space-saving branch circuit fuse that meets most protection requirements up to 30 A. : Very compact physical size that’s only 13/32” x 1-1/2” (10 x 38mm) with rejction tip. : Proper sizing can provide “No Damage” Type 2 coordinated protection for NEMA and IEC motor controllers. : Can be used where either a time-delay or a fast-acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction. : Superior protection for small horsepower motor circuits.
- AC Voltage Rating
600V AC
Amps30 A
Body MaterialMelamine
Body StyleCylindrical
ClassCC
DC Voltage Rating300V DC
ElementDual
Fuse Size1-1/2 in x 13/32 in
Interrupt Rating200kA at 600V AC; 20kA at 300V DC
SeriesLP-CC
SpeedTime Delay
