Part #MFZKJ18NAU1
MFG #MFZ-KJ18NA-U1
Product Description

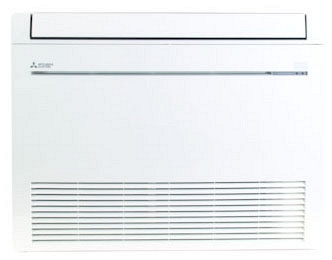

18000 BTU/Hr Cooling, 21000 BTU/Hr Heating, 208/230 VAC 60 Hz 1-Phase, 1 A MCA/0.72 A FLA Fan Motor, 1350 W Cooling/1730 W Heating, 21 SEER/12.6 EER/11.3 HSPF, Munsell 1.0Y 9.2/0.2, Floor Mount, R-410A, 1-Zone, Mini-Split, Multi-Flow Vane, Heat Pump Indoor Unit
Part #MFZKJ18NAU1
MFG #MFZ-KJ18NA-U1
Product Description
18000 BTU/Hr Cooling, 21000 BTU/Hr Heating, 208/230 VAC 60 Hz 1-Phase, 1 A MCA/0.72 A FLA Fan Motor, 1350 W Cooling/1730 W Heating, 21 SEER/12.6 EER/11.3 HSPF, Munsell 1.0Y 9.2/0.2, Floor Mount, R-410A, 1-Zone, Mini-Split, Multi-Flow Vane, Heat Pump Indoor Unit
- Floor Mounted Indoor Unit Mounts on the Floor or up to 5 Inch above the Floor; Floor Front Panel Access to the Filter for Ease of Cleaning; Perfect for Difficult Areas that May be Smaller or Don't have Us Able Space on the Wall; Quiet Operation; Multi-Flow Vane for Faster Heating; Unit Can be Recessed Mounted into Wall; Energy Star® Rated
- Heat Pump Indoor Unit; Type 1-Zone, Mini-Split, Multi-Flow Vane; Voltage Rating 208/230 Volt AC; Current Rating 1 Amp (MCA), 0.72 Amp FLA (Fan Motor), 20 Amp (Fuse/Breaker); Frequency Rating 60 Hertz; Number of Phases 1; Power Rating 1350 Watt (Cooling), 1730 Watt (Heating); Cooling Capacity 18000 BTU/Hour; Temperature Control Type Thermostat; Cooling Coefficient 3.5; Operating Temperature 14 to 115 Deg F (Cooling), -13 to 75 Deg F (Heating); Installation Floor Mount; Enclosure Finish Munsell 1.0Y 9.2/0.2; Size 29-17/32 Inch Width x 8-15/32 Inch Depth x 23-5/8 Inch Height; Weight 33 Pound; Approval ETL (Canada and US); Refrigerant Type R-410A; Pipe Connection Size 1/4 Inch Flared (Liquid), 1/2 Inch Flared (Gas); Heating Capacity 21000 BTU/Hour at 47 Deg F; Energy Efficiency 21 SEER, 12.6 EER, 11.3 HSPF; Air Flow Rating 198/254/328/420/491 CFM Dry, 168/216/279/357/417 CFM Wet (Cooling), 212/268/328/399/470 CFM Dry (Heating); Sound Pressure Level 28/33/39/45/50 Decibel (Cooling), 29/35/40/45/49 Decibel (Heating); Application Residential; Applicable Standard AHRI
- Brand
Mitsubishi Electric HVAC
ApprovalETL (Canada and US)
Cooling Capacity18000 BTU/Hour
Cooling Coefficient3.5
Enclosure FinishMunsell 1.0Y 9.2/0.2
Frequency Rating60 Hertz
InstallationFloor Mount
Operating Temperature14 to 115 Deg F (Cooling), -13 to 75 Deg F (Heating)
Power Rating1350 Watt (Cooling), 1730 Watt (Heating)
Size29-17/32 Inch Width x 8-15/32 Inch Depth x 23-5/8 Inch Height
Temperature Control TypeThermostat
Type1-Zone, Mini-Split, Multi-Flow Vane
Voltage Rating208/230 Volt AC
Weight33 Pound
Number of Phases1
