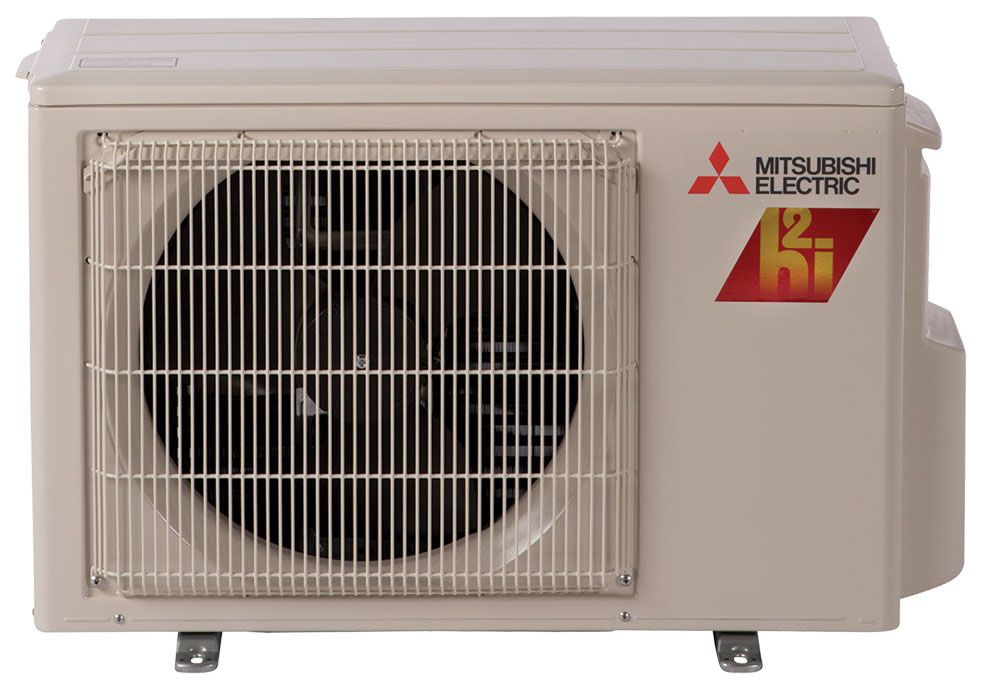

Part #MUFZKJ15NAHZU1
MFG #MUFZ-KJ15NAHZ-U1
Product Description
15000 BTU/Hr Cooling, 18000 BTU/Hr Heating, 208/230 VAC 60 Hz 1-Phase, 16 A MCA/0.93 A FLA Fan Motor, 1120 W Cooling/1410 W Heating, 21.8 SEER/13.5 EER/11.6 HSPF, Munsell 3Y 7.8/1.1, R-410A, 1-Zone, Mini-Split, Hyper Heating, Inverter Drive Compressor, Heat Pump Outdoor Unit
Part #MUFZKJ15NAHZU1
MFG #MUFZ-KJ15NAHZ-U1
Product Description
15000 BTU/Hr Cooling, 18000 BTU/Hr Heating, 208/230 VAC 60 Hz 1-Phase, 16 A MCA/0.93 A FLA Fan Motor, 1120 W Cooling/1410 W Heating, 21.8 SEER/13.5 EER/11.6 HSPF, Munsell 3Y 7.8/1.1, R-410A, 1-Zone, Mini-Split, Hyper Heating, Inverter Drive Compressor, Heat Pump Outdoor Unit
- Built-In Base Pan Heater; Energy Star® Rated
- Heat Pump Outdoor Unit; Type 1-Zone, Mini-Split, Hyper Heating, Inverter Drive Compressor; Voltage Rating 208/230 Volt AC; Current Rating 16 Amp (MCA), 20 Amp (MOP/Fuse/Breaker), 0.93 Amp FLA (Fan Motor), 12 Amp RLA/15 Amp LRA (Compressor); Frequency Rating 60 Hertz; Number of Phases 1; Power Rating 1120 Watt (Cooling), 1410 Watt (Heating); Cooling Capacity 15000 BTU/Hour; Cooling Coefficient 3.7; Operating Temperature 14 to 115 Deg F (Cooling), -13 to 75 Deg F (Heating); Enclosure Finish Munsell 3Y 7.8/1.1; Size 33-1/16 Inch Width x 13 Inch Depth x 34-5/8 Inch Height; Weight 124 Pound; Approval ETL (Canada and US); Refrigerant Type R-410A; Pipe Connection Size 1/4 Inch Flared (Liquid), 1/2 Inch Flared (Gas); Heating Capacity 18000 BTU/Hour at 47 Deg F; Energy Efficiency 21.8 SEER, 13.5 EER, 11.6 HSPF; Air Flow Rating 1653/1730 CFM (Cooling/Heating); Sound Pressure Level 51 Decibel (Cooling), 55 Decibel (Heating); Application Residential; Applicable Standard AHRI
- Brand
Mitsubishi Electric HVAC
ApprovalETL (Canada and US)
Cooling Capacity15000 BTU/Hour
Cooling Coefficient3.7
Enclosure FinishMunsell 3Y 7.8/1.1
Frequency Rating60 Hertz
Operating Temperature14 to 115 Deg F (Cooling), -13 to 75 Deg F (Heating)
Power Rating1120 Watt (Cooling), 1410 Watt (Heating)
Size33-1/16 Inch Width x 13 Inch Depth x 34-5/8 Inch Height
Type1-Zone, Mini-Split, Hyper Heating, Inverter Drive Compressor
Voltage Rating208/230 Volt AC
Weight124 Pound
Number of Phases1
