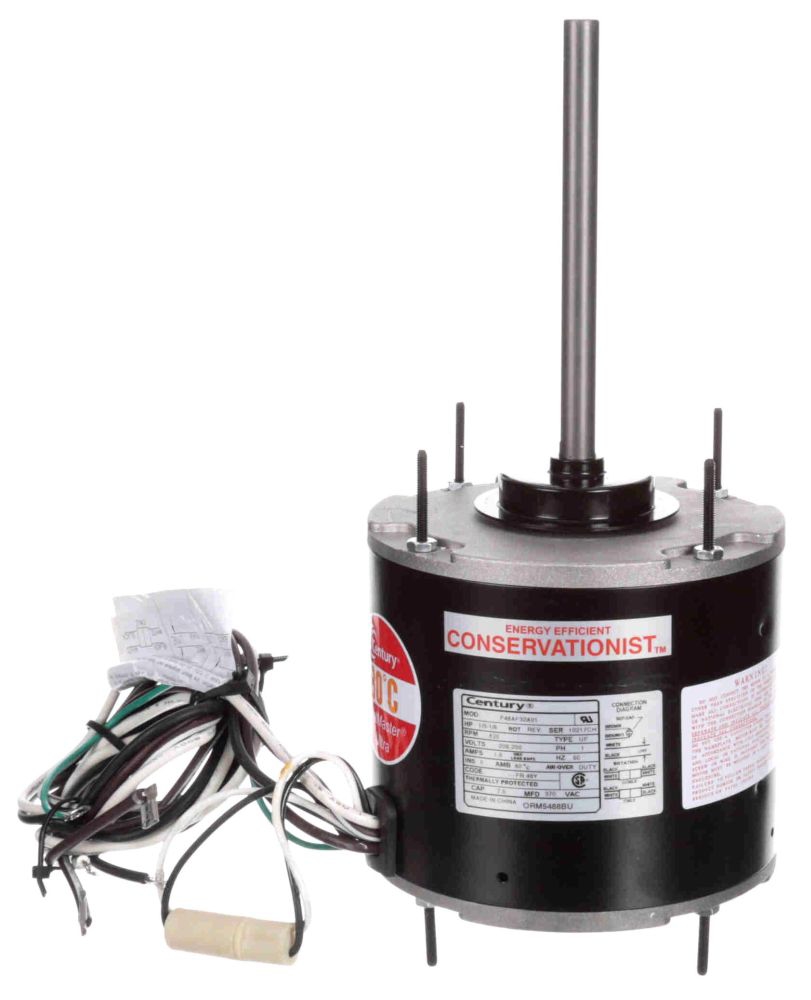

Part #ORM5488BU
Product Description
1/3 to 1/8 HP, 208/230 VAC 60 Hz 1-Phase, 1.8 A FLA, 825 RPM, Reversible, 26% Efficiency, 8-Pole, 1-Speed, 48 Rolled Steel Frame, Class F Insulation, Extended Stud Mount, TEAO Enclosure, Permanent Split Capacitor, Condenser Fan Motor
Part #ORM5488BU
Product Description
1/3 to 1/8 HP, 208/230 VAC 60 Hz 1-Phase, 1.8 A FLA, 825 RPM, Reversible, 26% Efficiency, 8-Pole, 1-Speed, 48 Rolled Steel Frame, Class F Insulation, Extended Stud Mount, TEAO Enclosure, Permanent Split Capacitor, Condenser Fan Motor
- Brand
Century Motors
ApprovalUL, CSA
Enclosure TypeTEAO
Frame MaterialRolled Steel
Frequency Rating60 Hertz
Insulation ClassF
Motor FLA1.8 Amp
MountingExtended Stud
NEMA Frame Size48
Number of Speeds1
Power Rating1/3 to 1/8 HP
ReversibleYes
Service Factor1
Shipping Height6.810 Inch
Shipping Length13.780 Inch
Shipping Width6.410 Inch
Speed Rating825 RPM
Voltage Rating208/230 Volt AC 1-Phase
Weight16 Pound
