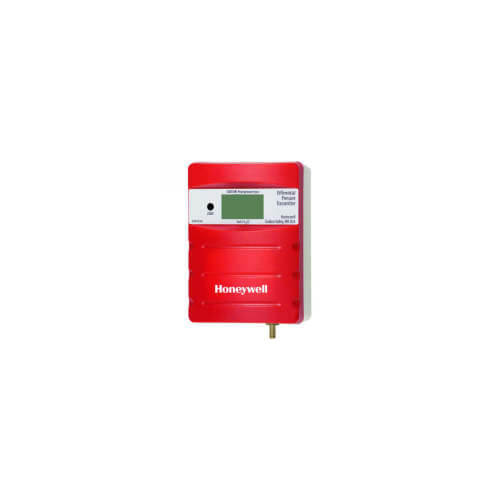

Part #P7640A1000
Product Description
24 VAC, 12 to 30 VDC, 0 to 5/0 to 10 VDC/4 to 20 mA Output, +/-1% Full Scale, 0 to 250 Pascal, 1/4" Hose Barb, Brass Connection, Panel Mount, Unplugged Screw Terminal Block, Differential, Pressure Sensor
Part #P7640A1000
Product Description
24 VAC, 12 to 30 VDC, 0 to 5/0 to 10 VDC/4 to 20 mA Output, +/-1% Full Scale, 0 to 250 Pascal, 1/4" Hose Barb, Brass Connection, Panel Mount, Unplugged Screw Terminal Block, Differential, Pressure Sensor
- Brand
Honeywell Building Management Systems
Accuracy+/-1 Percent (Full Scale)
Maximum Output Current20 Milliamp
Maximum Output Voltage0 to 5/0 to 10 Volt DC
Maximum Supply Voltage24 Volt AC, 30 Volt DC
Minimum Output Current4 Milliamp
Minimum Supply Voltage12 Volt DC
MountingPanel
Operating Temperature32 to 140 Deg F
Pressure Range0 to 250 Pascal
Process Connection1/4 Inch Hose Barb
Size3.313 Inch Width x 2.125 Inch Depth x 4.5 Inch Height
Supply Current60 Milliamp, 25 Milliamp
Termination TypeUnplugged Screw Terminal Block
TypeDifferential
