Part #PEFYP96NMHSUE
MFG #PEFY-P96NMHSU-E
Product Description

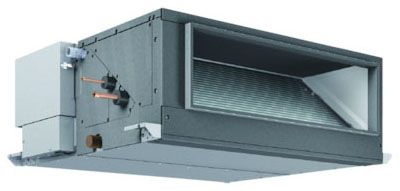

96000 BTU/Hr Cooling, 108000 BTU/Hr Heating, 208/230 VAC 60 Hz 1-Phase, 8.2 A MCA, 0.82 kW Cooling/Heating, Galvanized Steel, Ceiling Concealed Horizontal Ducted, R-410A, High Static, Air Conditioner Indoor Unit
Part #PEFYP96NMHSUE
MFG #PEFY-P96NMHSU-E
Product Description
96000 BTU/Hr Cooling, 108000 BTU/Hr Heating, 208/230 VAC 60 Hz 1-Phase, 8.2 A MCA, 0.82 kW Cooling/Heating, Galvanized Steel, Ceiling Concealed Horizontal Ducted, R-410A, High Static, Air Conditioner Indoor Unit
- Single Phase; Dual Set Point Functionality; DC Motor; Side Access Control Panel; Flexibility in Duct Configuration
- Air Conditioner Indoor Unit; Type High Static; Voltage Rating 208/230 Volt AC; Current Rating 8.2 Amp (MCA), 15 Amp (MOP), 4.89/4.43 Amp (Cooling/Heating); Frequency Rating 60 Hertz; Number of Phases 1; Power Rating 0.82 Kilowatt (Cooling/Heating); Cooling Capacity 96000 BTU/Hour; Connection Type Terminal Block; Operating Temperature 67 to 80 Deg F (Cooling), 70 Deg F (Heating); Installation Ceiling Concealed Horizontal Ducted; Enclosure Material Galvanized Steel; Size 49-1/4 Inch Width x 44-1/8 Inch Depth x 18-9/16 Inch Height; Weight 221 Pound; Approval ETL (US); Refrigerant Type R-410A; Pipe Connection Size 3/8 Inch Brazed (Liquid), 7/8 Inch Brazed (Gas); Heating Capacity 108000 BTU/Hour; Air Flow Rating 2048/2507/2966 CFM; Sound Pressure Level 39/42/46 Decibel
- Brand
Mitsubishi Electric HVAC
ApprovalETL (US)
Connection TypeTerminal Block
Cooling Capacity96000 BTU/Hour
Enclosure MaterialGalvanized Steel
Frequency Rating60 Hertz
InstallationCeiling Concealed Horizontal Ducted
Operating Temperature67 to 80 Deg F (Cooling), 70 Deg F (Heating)
Power Rating0.82 Kilowatt (Cooling/Heating)
Size49-1/4 Inch Width x 44-1/8 Inch Depth x 18-9/16 Inch Height
TypeHigh Static
Voltage Rating208/230 Volt AC
Weight221 Pound
Number of Phases1
