Part #PUYA36NKA7
MFG #PUY-A36NKA7
Product Description

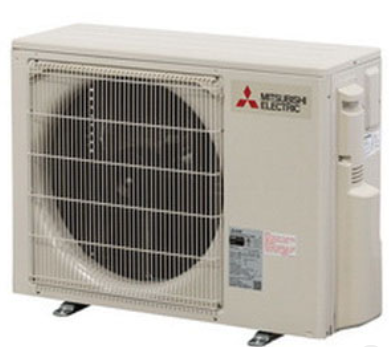

36000 BTU/Hr Cooling, 208/230 VAC 60 Hz 1-Phase, 25 A MCA/0.5 A FLA Fan Motor, 3270 W Cooling, 19.1 SEER/11 EER, Ivory Munsell 3Y 7.8/1.1, R-410A, Professional, 1-Zone, Standard Heat Pump, Inverter Drive Compressor, Air Conditioner Outdoor Unit
Part #PUYA36NKA7
MFG #PUY-A36NKA7
Product Description
36000 BTU/Hr Cooling, 208/230 VAC 60 Hz 1-Phase, 25 A MCA/0.5 A FLA Fan Motor, 3270 W Cooling, 19.1 SEER/11 EER, Ivory Munsell 3Y 7.8/1.1, R-410A, Professional, 1-Zone, Standard Heat Pump, Inverter Drive Compressor, Air Conditioner Outdoor Unit
- Variable Speed Inverter-Driven Compressor; 24 Hour Continuous Operation; High Pressure Protection; Fast Restart; Superior Energy and Operational Efficiency
- Air Conditioner Outdoor Unit; Type Professional, 1-Zone, Standard Heat Pump, Inverter Drive Compressor; Voltage Rating 208/230 Volt AC; Current Rating 25 Amp (MCA), 31 Amp (MOP), 0.5 Amp FLA (Fan Motor), 8 Amp RLA/13 Amp LRA (Compressor), 30 Amp (Fuse/Breaker); Frequency Rating 60 Hertz; Number of Phases 1; Power Rating 3270 Watt (Cooling); Cooling Capacity 36000 BTU/Hour; Operating Temperature -40 to 115 Deg F (Cooling); Enclosure Finish Ivory Munsell 3Y 7.8/1.1; Size 41-5/16 Inch Width x 14-3/16 Inch Depth x 52-11/16 Inch Height; Weight 211 Pound; Approval ETL (Canada and US); Refrigerant Type R-410A; Pipe Connection Size 3/8 Inch Flared (Liquid), 5/8 Inch Flared (Gas); Energy Efficiency 19.1 SEER, 11 EER; Air Flow Rating 3880 CFM (Cooling); Sound Pressure Level 52 Decibel (Cooling); Application Light Commercial; Applicable Standard AHRI
- Brand
Mitsubishi Electric HVAC
ApprovalETL (Canada and US)
Cooling Capacity36000 BTU/Hour
Enclosure FinishIvory Munsell 3Y 7.8/1.1
Frequency Rating60 Hertz
Operating Temperature-40 to 115 Deg F (Cooling)
Power Rating3270 Watt (Cooling)
Size41-5/16 Inch Width x 14-3/16 Inch Depth x 52-11/16 Inch Height
TypeProfessional, 1-Zone, Standard Heat Pump, Inverter Drive Compressor
Voltage Rating208/230 Volt AC
Weight211 Pound
Number of Phases1
