Part #SAC1360S1A
MFG #SAC1360S1A-CY
Product Description

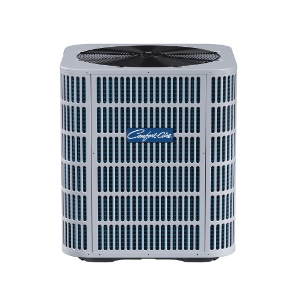

Split System Air Conditioner Condenser, 5 ton, 208-230 V, 60000 Btu/hr
Part #SAC1360S1A
MFG #SAC1360S1A-CY
Product Description
Split System Air Conditioner Condenser, 5 ton, 208-230 V, 60000 Btu/hr
- Eco-friendly R-454B refrigerant with low GWP. Energy-efficient compressor. Equipped with thermal overload protection. High quality copper tube and aluminum fin condenser. Service valves with sweat connections and easy-access gauge ports. Factory-installed high pressure switch and low pressure switch. AHRI certified and ETL listed. Compact design allows for ease of installation, clearance, durability and maneuverability. Powder-coated galvanized steel cabinet. Protective steel louvered coil guard. Steel wire axial fan guard. ECM fan motor and unique blade style allowing for smooth discharge air and quieter operation.
- Split System Air Conditioner Condenser, SAC 13 Series, 5 ton Nominal Capacity, 60000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 36.9 A Amperage Rating, 1/3 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 13 SEER Rating, 1 Number of Stages, R-454B Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 80 dBA Sound Level, Connection Type: Sweat, 60 A Fuse Rating, ECM Motor Type, 55 to 120 deg F Temperature Rating, Steel, Galvanized, 33-3/16 in H x 29-1/8 in W x 29-1/8 in D Dimensions
- Brand
Comfort-Aire
FamilySE Series
Nominal Capacity (Tons)5 T
Overall Dimensions34 in H x 30 in W x 30 in D
Refrigerant TypeR-454B
Voltage208-230 V
