Part #SHE05192
MFG #SHE05192
Product Description

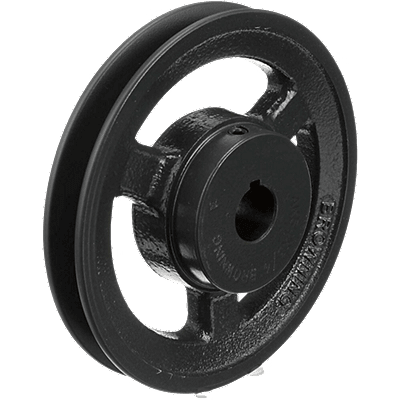

3/4" Bore Diameter, 5-1/4" OD, 4.6 to 5" Pitch, Cast Iron, 2-Set Screw, 1-Groove, Web, Sheave for Packaged Rooftop Air Conditioner
Part #SHE05192
MFG #SHE05192
Product Description
3/4" Bore Diameter, 5-1/4" OD, 4.6 to 5" Pitch, Cast Iron, 2-Set Screw, 1-Groove, Web, Sheave for Packaged Rooftop Air Conditioner
- Sheave; Type Web; Number of Grooves 1; Outside Diameter 5-1/4 Inch; Width 3/4 Inch; Pitch Diameter 4.6 to 5 Inch; Bore Diameter 3/4 Inch; Bore Length 1-1/6 Inch; Material Cast Iron; For Belt Type 3L, 4L, A; Face Width 0.75 Inch; Keyway Size 3/16 Inch x 3/32 Inch; Number of Set Screws 2; Used On Packaged Rooftop Air Conditioner
- Brand
American Standard Heating & Air Conditioning
Bore Diameter3/4 Inch
Bore Length1-1/6 Inch
For Belt Type3L, 4L, A
Number of Grooves1
Outside Diameter5-1/4 Inch
Pitch Diameter4.6 to 5 Inch
Shipping Height3.000 Inch
Shipping Length6.500 Inch
Carton Quantity1 per Pack
Shipping Weight13.000 Pound
Shipping Width6.500 Inch
TypeWeb
Width3/4 Inch
