Part #SHE05366
MFG #SHE05366
Product Description

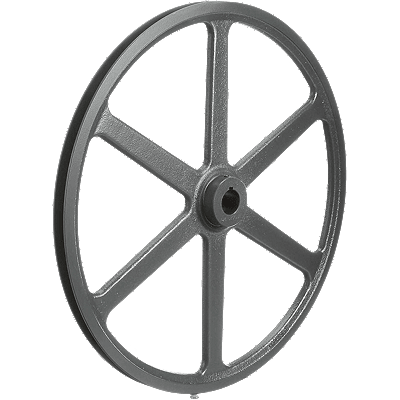

1-3/16" Bore Diameter, 18-3/4" OD, 18 to 18.4" Pitch, Powder Coated Cast Iron, 1-Groove, Statically Balanced, Spoke, Sheave for Packaged Rooftop Air Conditioner
Part #SHE05366
MFG #SHE05366
Product Description
1-3/16" Bore Diameter, 18-3/4" OD, 18 to 18.4" Pitch, Powder Coated Cast Iron, 1-Groove, Statically Balanced, Spoke, Sheave for Packaged Rooftop Air Conditioner
- Statically Balanced
- Sheave; Type Statically Balanced, Spoke; Number of Grooves 1; Outside Diameter 18-3/4 Inch; Width 7/8 Inch; Pitch Diameter 18 Inch (A/4L Belt), 18.4 Inch (B/5L Belt); Bore Diameter 1-3/16 Inch; Bore Length 1-15/32 Inch; Material Cast Iron; Finish Powder Coated; For Belt Type A/4L, B/5L; Face Width 7/8 Inch; Keyway Size 1/4 Inch x 1/8 Inch; Used On YSD300G4RHC17D/TSH250FDR0B0W/TSD300G4R0C16P Packaged Rooftop Air Conditioner
- Brand
AMERICAN STANDARD
Bore Diameter1-3/16 Inch
Bore Length1-15/32 Inch
FinishPowder Coated
For Belt TypeA/4L, B/5L
Number of Grooves1
Outside Diameter18-3/4 Inch
Pitch Diameter18 Inch (A/4L Belt), 18.4 Inch (B/5L Belt)
Shipping Height19.600 Inch
Shipping Length20.000 Inch
Carton Quantity1 per Pack
Shipping Weight9.000 Pound
Shipping Width4.000 Inch
TypeStatically Balanced, Spoke
Width7/8 Inch
