Part #TG31930175
MFG #TG31930C175B1605AP
Product Description

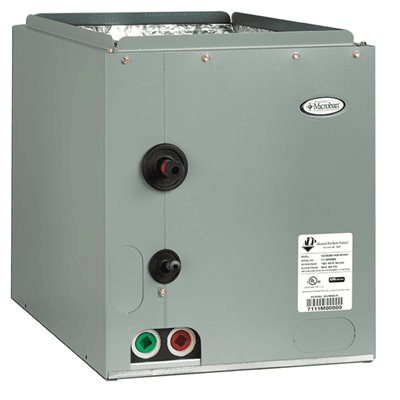

17.5" x 20.5" x 16.5", 19.5" x 13" Coil, 0.75" Cabinet Upper Notch, 3/4" FPT Drain, Galvanized Steel Cabinet, Aluminum Slab, Polymer Drain Pan, Left Hand Cased, Premier, TXV Access Port, Evaporator Coil
Part #TG31930175
MFG #TG31930C175B1605AP
Product Description
17.5" x 20.5" x 16.5", 19.5" x 13" Coil, 0.75" Cabinet Upper Notch, 3/4" FPT Drain, Galvanized Steel Cabinet, Aluminum Slab, Polymer Drain Pan, Left Hand Cased, Premier, TXV Access Port, Evaporator Coil
- High Efficiency Lanced Fin Design; R-22, R-410A, AC and Heat Pump Compatible; All Coils have Durable Packaging with Bar Coded Labels on the Box; Coils are Air Pressure Tested at 500 PSI, Leak Tested with Helium, Sealed with Rubber Plugs, Then Charged with Dry Air; Microban® Antimicrobial Additive to Inhibit the Growth of Mold and Mildew in the Drain Pan; UV Resistant Drain Pans are Molded of High Temperature (450 Deg F) Engineered Polymer; Dual 3/4 Inch FPT Condensate Drains on Front-Left and Front-Right Side of Drain Pans; Patented Hydrotec™ Low Water Retention Drain Pan; Copper Refrigerant Connections for Easy Brazing on Both Copper and Aluminum Slab Models; Intertek Lab Tested 1% or Less Cabinet Air Leakage for Better Efficiency; Cased Coil Cabinets are Fully Lined with 5/8 Inch Foil Faced Insulation; Short Cabinet with Easy Access; Non-Captive Refrigerant Lines with Long Stubs Make for Easy Installation; Enhanced Refrigerant Pipe Grommets- Secure, Tight and Easy-To-Install; Copper Distributor Tube Assembly Provides Brass to Brass Threads for Trouble-Free Service of TXV; Cabinet Insulation Hold Down Tabs for Easy Drain Pan Removal; Interlocking Doors Reduce Air Leakage and Allow for Easy Access; Foam Drain Seal for Reduced Air Leakage; All Multi-Position Coils are Field Convertible from Horizontal Right-To-Left Airflow and Horizontal Left-To-Right Airflow; Corrosion Resistant Coil Header Plates; Expansion Valve with Improved Temperature Sensing Mounted Inside Cabinet to Prevent External Sweating, Bulb Clamped Standard Factory Installed; Made in USA
- Evaporator Coil; Item Evaporator Coil, Premier, TXV Access Port; Size 17.5 Inch Width x 20.5 Inch Depth x 16.5 Inch Height; Material Galvanized Steel (Cabinet), Aluminum (Slab), Polymer (Drain Pan); Applicable Standard UL (Canada and US), AHRI; Coil Overall Dimension 19.5 Inch Depth x 13 Inch Height; Metering Device Non-Bleed HP-A/C TXV (R-410A); Cabinet Upper Notch 0.75 Inch (Standard); Configuration Left Hand Cased; Drain Connection (2) 3/4 Inch Female Threaded
- Brand
Advanced Distributor Products
ItemEvaporator Coil, Premier, TXV Access Port
Size17.5 Inch Width x 20.5 Inch Depth x 16.5 Inch Height
