Part #UDX45
MFG #UDX45
Product Description

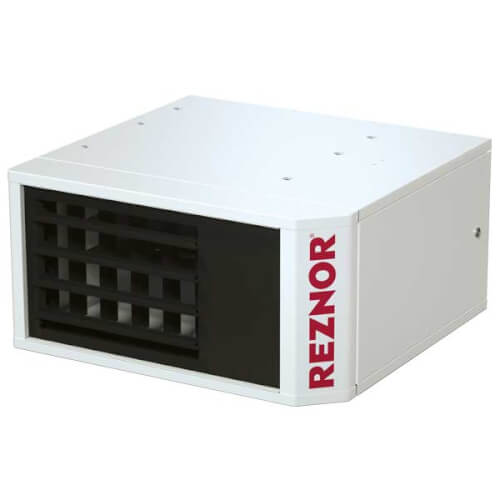

27" x 29-3/4" x 13-3/4", 115 VAC 60 Hz 1-Phase, 2.4 A FLA/15 A MOP/1 A at 24 V Control, 155 W, 45000 BTU/Hr Input, 37350 BTU/Hr Output, 629 CFM, Powder Painted, Tone White and Black, Natural/Propane Gas, Power Vented, Gas-Fired Unit Heater
Part #UDX45
MFG #UDX45
Product Description
27" x 29-3/4" x 13-3/4", 115 VAC 60 Hz 1-Phase, 2.4 A FLA/15 A MOP/1 A at 24 V Control, 155 W, 45000 BTU/Hr Input, 37350 BTU/Hr Output, 629 CFM, Powder Painted, Tone White and Black, Natural/Propane Gas, Power Vented, Gas-Fired Unit Heater
- Gas-Fired Unit Heater; Type Power Vented; Voltage Rating 115 Volt AC 60 Hertz; Current Rating 2.4 Amp (FLA), 15 Amp (MOP), 1 Amp at 24 Volt (Control); Power Rating 155 Watt; Number of Phases 1; Capacity 45000 BTU/Hour (Input), 37350 BTU/Hour (Output); Heating Element Tcore2 Titanium Stabilized Aluminized Steel; Control Type 24 Volt Transformer; Fan/Motor Type Low Static Axial Fan, 115 Volt 0.03 HP (Open) 0.06 HP (Enclosed) 1550 RPM Motor; Air Flow Rate 629 CFM; Finish Powder Painted; Color Tone White and Black; Size 27 Inch Width x 29-3/4 Inch Depth x 13-3/4 Inch Height; Application Commercial, Industrial; Approval ETL (Canada and US); Fuel Type Natural/Propane Gas; Ignition Type Multi-Try Direct Spark; Gas Connection Size 1/2 Inch; Fan Diameter 10 Inch; Vent Connection Size 4 Inch; Noise Level 40 Decibel at 15 Foot; Discharge Air Opening Area 0.96 Square Foot; Output Velocity 656 FPM; Thermal Efficiency 83 Percent; Discharge Air Temperature Rise 55 Deg F; Applicable Standard ANSI Z223.1
- Integrated Circuit Board with 7 Segment Display; External Status Indicating LED; Integrated Horizontal Louvers in Front Face; External Gas Pipe Connection; Full Fan Guard; Patented Single Burner Combustion System Including a 1-Piece Burner Assembly; 2-Point and 4-Point Suspension; External Terminal Strip for 24 Volt Wiring; Vibration/Noise Isolated Fan and Venter Motors Designed for Low Noise Operation; 1-Stage Natural Gas Valve; Multi-Try Direct Spark Ignition with Timed Lockout
- Brand
Reznor HVAC
Air Flow Rate629 CFM
ApprovalETL (Canada and US)
Capacity45000 BTU/Hour (Input), 37350 BTU/Hour (Output)
ColorTone White and Black
Fan/Motor TypeLow Static Axial Fan, 115 Volt 0.03 HP (Open) 0.06 HP (Enclosed) 1550 RPM Motor
FinishPowder Painted
Heating ElementTcore2 Titanium Stabilized Aluminized Steel
Power Rating155 Watt
Size27 Inch Width x 29-3/4 Inch Depth x 13-3/4 Inch Height
TypePower Vented
Voltage Rating115 Volt AC 60 Hertz
Number of Phases1
