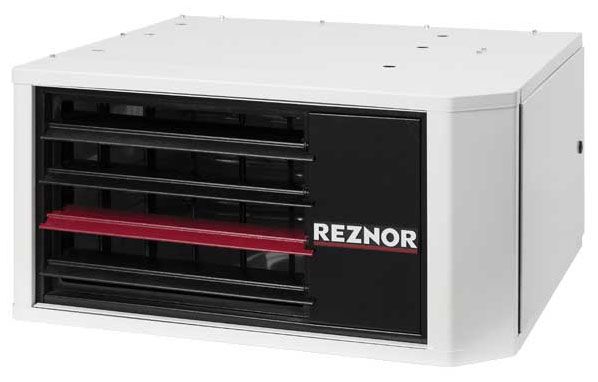

Part #UDZ250
MFG #UDZ250
Product Description
38-3/16" x 48-7/16" x 26-1/8", 115 VAC 60 Hz 1-Phase, 7.5 A FLA/15 A MOP/1 A at 24 V Control, 747 W, 250000 BTU/Hr Input, 207500 BTU/Hr Output, 3202 CFM, Powder Painted, Tone White and Black, Natural/Propane Gas, Separated Combustion, Gas-Fired Unit Heater
Part #UDZ250
MFG #UDZ250
Product Description
38-3/16" x 48-7/16" x 26-1/8", 115 VAC 60 Hz 1-Phase, 7.5 A FLA/15 A MOP/1 A at 24 V Control, 747 W, 250000 BTU/Hr Input, 207500 BTU/Hr Output, 3202 CFM, Powder Painted, Tone White and Black, Natural/Propane Gas, Separated Combustion, Gas-Fired Unit Heater
- Integrated Circuit Board with 7 Segment Display; External Status Indicating LED; Integrated Horizontal Louvers in Front Face; External Gas Pipe Connection; Full Fan Guard; Patented Single Burner Combustion System Including a 1-Piece Burner Assembly; 2-Point and 4-Point Suspension; External Terminal Strip for 24 Volt Wiring; Vibration/Noise Isolated Fan and Venter Motors Designed for Low Noise Operation; 1-Stage Natural Gas Valve; Multi-Try Direct Spark Ignition with Timed Lockout
- Gas-Fired Unit Heater; Type Separated Combustion; Voltage Rating 115 Volt AC 60 Hertz; Current Rating 7.5 Amp (FLA), 15 Amp (MOP), 1 Amp at 24 Volt (Control); Power Rating 747 Watt; Number of Phases 1; Capacity 250000 BTU/Hour (Input), 207500 BTU/Hour (Output); Heating Element Tcore2 Titanium Stabilized Aluminized Steel; Control Type 24 Volt Transformer, 20 Amp at 115 Volt Built-In Disconnect Switch; Fan/Motor Type Low Static Axial Fan, 115 Volt 1/4 HP (Open) 1/4 HP (Enclosed) 1050 RPM Motor; Air Flow Rate 3202 CFM; Finish Powder Painted; Color Tone White and Black; Size 38-3/16 Inch Width x 48-7/16 Inch Depth x 26-1/8 Inch Height; Application Commercial, Industrial; Approval ETL (Canada and US); Fuel Type Natural/Propane Gas; Ignition Type Multi-Try Direct Spark; Gas Connection Size 3/4 Inch; Fan Diameter 20 Inch; Vent Connection Size 5 Inch; Noise Level 56 Decibel at 15 Foot; Discharge Air Opening Area 3.51 Square Foot; Output Velocity 911 FPM; Thermal Efficiency 83 Percent; Discharge Air Temperature Rise 60 Deg F; Applicable Standard ANSI Z223.1
- Brand
Reznor HVAC
Air Flow Rate3202 CFM
ApprovalETL (Canada and US)
Capacity250000 BTU/Hour (Input), 207500 BTU/Hour (Output)
ColorTone White and Black
Fan/Motor TypeLow Static Axial Fan, 115 Volt 1/4 HP (Open) 1/4 HP (Enclosed) 1050 RPM Motor
FinishPowder Painted
Heating ElementTcore2 Titanium Stabilized Aluminized Steel
Power Rating747 Watt
Size38-3/16 Inch Width x 48-7/16 Inch Depth x 26-1/8 Inch Height
TypeSeparated Combustion
Voltage Rating115 Volt AC 60 Hertz
Number of Phases1
