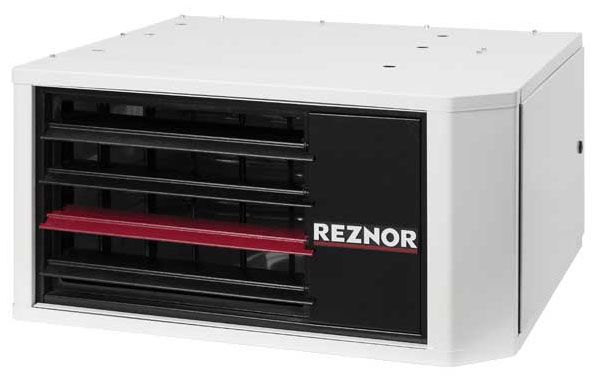

Part #UDZ400
MFG #UDZ400
Product Description
41" x 48-29/32" x 34-1/8", 115 VAC 60 Hz 1-Phase, 11 A FLA/20 A MOP/1 A at 24 V Control, 1086 W, 400000 BTU/Hr Input, 332000 BTU/Hr Output, 5123 CFM, Powder Painted, Tone White and Black, Natural/Propane Gas, Separated Combustion, Gas-Fired Unit Heater
Part #UDZ400
MFG #UDZ400
Product Description
41" x 48-29/32" x 34-1/8", 115 VAC 60 Hz 1-Phase, 11 A FLA/20 A MOP/1 A at 24 V Control, 1086 W, 400000 BTU/Hr Input, 332000 BTU/Hr Output, 5123 CFM, Powder Painted, Tone White and Black, Natural/Propane Gas, Separated Combustion, Gas-Fired Unit Heater
- Integrated Circuit Board with 7 Segment Display; External Status Indicating LED; Integrated Horizontal Louvers in Front Face; External Gas Pipe Connection; Full Fan Guard; Patented Single Burner Combustion System Including a 1-Piece Burner Assembly; 2-Point and 4-Point Suspension; External Terminal Strip for 24 Volt Wiring; Vibration/Noise Isolated Fan and Venter Motors Designed for Low Noise Operation; 1-Stage Natural Gas Valve; Multi-Try Direct Spark Ignition with Timed Lockout
- Gas-Fired Unit Heater; Type Separated Combustion; Voltage Rating 115 Volt AC 60 Hertz; Current Rating 11 Amp (FLA), 20 Amp (MOP), 1 Amp at 24 Volt (Control); Power Rating 1086 Watt; Number of Phases 1; Capacity 400000 BTU/Hour (Input), 332000 BTU/Hour (Output); Heating Element Tcore2 Titanium Stabilized Aluminized Steel; Control Type 24 Volt Transformer, 20 Amp at 115 Volt Built-In Disconnect Switch; Fan/Motor Type Low Static Axial Fan, 115 Volt 1/2 HP (Open) 1/2 HP (Enclosed) 1050 RPM Motor; Air Flow Rate 5123 CFM; Finish Powder Painted; Color Tone White and Black; Size 41 Inch Width x 48-29/32 Inch Depth x 34-1/8 Inch Height; Application Commercial, Industrial; Approval ETL (Canada and US); Fuel Type Natural/Propane Gas; Ignition Type Multi-Try Direct Spark; Gas Connection Size 3/4 Inch; Fan Diameter 24 Inch; Vent Connection Size 6 Inch; Noise Level 62 Decibel at 15 Foot; Discharge Air Opening Area 4.79 Square Foot; Output Velocity 1069 FPM; Thermal Efficiency 83 Percent; Discharge Air Temperature Rise 60 Deg F; Applicable Standard ANSI Z223.1
- Brand
Reznor HVAC
Air Flow Rate5123 CFM
ApprovalETL (Canada and US)
Capacity400000 BTU/Hour (Input), 332000 BTU/Hour (Output)
ColorTone White and Black
Fan/Motor TypeLow Static Axial Fan, 115 Volt 1/2 HP (Open) 1/2 HP (Enclosed) 1050 RPM Motor
FinishPowder Painted
Heating ElementTcore2 Titanium Stabilized Aluminized Steel
Power Rating1086 Watt
Size41 Inch Width x 48-29/32 Inch Depth x 34-1/8 Inch Height
TypeSeparated Combustion
Voltage Rating115 Volt AC 60 Hertz
Number of Phases1
