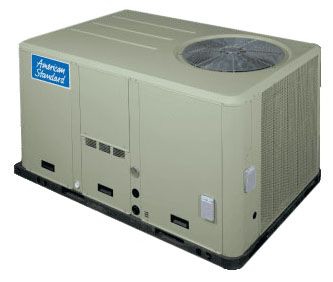

Part #YSC090H4EMA0000
MFG #YSC090H4EMA0000
Product Description
7.5 Ton Cooling, 460 VAC 60 Hz 3-Phase, 19 A MCA/1.5 A FLA Fan Motor, 7.77 kW, 11.2 EER/12.7 IEER, Zinc Coated/Weather Resistant Baked Enamel, Heavy Gauge Galvanized Steel, R-410A, Medium Gas Heat, Standard Efficiency, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor, Packaged Rooftop Air Conditioner
Part #YSC090H4EMA0000
MFG #YSC090H4EMA0000
Product Description
7.5 Ton Cooling, 460 VAC 60 Hz 3-Phase, 19 A MCA/1.5 A FLA Fan Motor, 7.77 kW, 11.2 EER/12.7 IEER, Zinc Coated/Weather Resistant Baked Enamel, Heavy Gauge Galvanized Steel, R-410A, Medium Gas Heat, Standard Efficiency, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor, Packaged Rooftop Air Conditioner
- Right-Sized for Straightforward Retrofits; Color-Coded and Numbered Wiring with Key Connectors; Easy Conversion from Downflow to Horizontal; Single-Side Access with Hinged Access to Control Panel; Single Point Power Connection; Anti-Short Cycle Timer - Provides a 3 Minute Minimum "On" Time and 3 Minute "Off" Time for Compressors to Enhance Compressor Reliability by Assuring Proper Oil Return; Designed to be Used on Downflow Units, Barometric Relief is an Unpowered Means of Relieving Excess Building Pressure; Colored and Numbered Wiring - Save Time and Money Tracing Wires and Diagnosing the Unit; Convertible Units Ship in a Downflow Configuration and Can be Easily Converted to Horizontal by Simply Moving Two Panels; The Low Voltage Terminal Board is External to the Electrical Control Cabinet; It is Extremely Easy to Locate and Attach the Thermostat Wire and Test Operation of All Unit Functions; Crankcase Heaters - These Band or Insertion Heaters Provide Improved Compressor Reliability by Warming the Oil to Prevent Migration During Off-Cycles or Low Ambient Conditions; The Heat Exchanger is Fabricated Using Corrosion-Resistant Aluminized Steel Tubes and Burners as Standard on All Models; It has an Induced Draft Blower to Pull the Gas Mixture Through the Burner Tubes; The Heater has a Direct Spark Ignition System Which Doubles as a Safety Device to Prove the Flame; Precedent™ Units with 3-Phase Power are Equipped with Phase Monitoring Protection as Standard; These Devices Protect Motors and Compressors Against Problems Caused by Phase Loss, Phase Imbalance and Phase Reversal Indication; Quick Access Panels - Remove two Screws for Access to the Standardized Internal Components and Wiring; Components are Placed in the Same Location on All Units; Due to Standardized Components Throughout the Line, Contractors/Owners Can Stock Fewer Parts; Light Weight; Easy to Recycle; Minimize Galvanic Corrosion; The Wiring of the Low Voltage Connections to the Unit and the Zone Sensors is as Simple as 1-1, 2-2 and 3-3, this Simplified System Makes it Easy for the Installer to Wire
- Packaged Rooftop Air Conditioner; Type Medium Gas Heat, Standard Efficiency, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor; Voltage Rating 460 Volt AC; Current Rating 19 Amp MCA/30 Amp MCB (Indoor Fan Motor), 1.6 Amp FLA/12.5 Amp LRA (Evaporator Fan Motor), 1.5 Amp FLA/6.1 Amp LRA (Condenser Fan Motor), 12.2 Amp RLA/100 Amp LRA (Compressor Motor); Frequency Rating 60 Hertz; Number of Phases 3; Power Rating 7.77 Kilowatt, 6.7 HP (Compressor Motor), 0.7 HP (Condenser Fan Motor), 1 HP (Evaporator Fan Motor); Cooling Capacity 7.5 Ton; Temperature Control Type Thermostat; Connection Type Low Voltage Terminal; Operating Temperature 0 to 115 Deg F; Enclosure Material Heavy Gauge Galvanized Steel; Enclosure Finish Zinc Coated/Weather Resistant Baked Enamel; Size 88-5/8 Inch Length x 53-1/4 Inch Width x 40-7/8 Inch Height; Weight 832 Pound; Approval UL (Canada and US); Refrigerant Type R-410A; Motor Type Belt Drive; Energy Efficiency 11.2 EER, 12.7 IEER; Air Flow Rating 3000 CFM; Furnished Filter Type Throwaway; Number of Compressor 1; Noise Level 89 Decibel; Applicable Standard AHRI 340/360, ANSI Z21.47
- Brand
AMERICAN STANDARD
ApprovalUL (Canada and US)
Connection TypeLow Voltage Terminal
Cooling Capacity7.5 Ton
Enclosure FinishZinc Coated/Weather Resistant Baked Enamel
Enclosure MaterialHeavy Gauge Galvanized Steel
Frequency Rating60 Hertz
Operating Temperature0 to 115 Deg F
Power Rating7.77 Kilowatt, 6.7 HP (Compressor Motor), 0.7 HP (Condenser Fan Motor), 1 HP (Evaporator Fan Motor)
Size88-5/8 Inch Length x 53-1/4 Inch Width x 40-7/8 Inch Height
Temperature Control TypeThermostat
TypeMedium Gas Heat, Standard Efficiency, Convertible Air Flow, Electromechanical Control Unit, Scroll Compressor
Voltage Rating460 Volt AC
Weight832 Pound
Number of Phases3
