Part #YSJ090A3S0L0000
MFG #YSJ090A3S0L000000000000000
Product Description

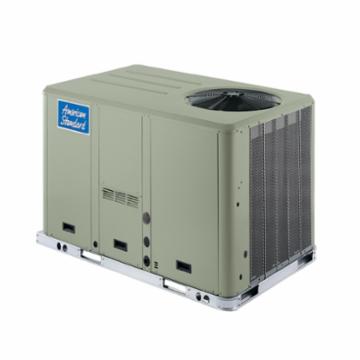

7.5 Ton Cooling, 120000 BTU/Hr Input/97200 BTU/Hr Output Heating, 208/230 VAC 60 Hz 3-Phase, 16.4/9.2 A RLA/110/58 A LRA, 8.18 kW, 11 EER/14.6 IEER, Zinc Coated, Galvanized Steel, R-410A, Cooling/Low Gas Heat, Standard Efficiency, 2-Manifold Scroll Compressor, Packaged Rooftop Air Conditioner with Symbio 700 Control System
Part #YSJ090A3S0L0000
MFG #YSJ090A3S0L000000000000000
Product Description
7.5 Ton Cooling, 120000 BTU/Hr Input/97200 BTU/Hr Output Heating, 208/230 VAC 60 Hz 3-Phase, 16.4/9.2 A RLA/110/58 A LRA, 8.18 kW, 11 EER/14.6 IEER, Zinc Coated, Galvanized Steel, R-410A, Cooling/Low Gas Heat, Standard Efficiency, 2-Manifold Scroll Compressor, Packaged Rooftop Air Conditioner with Symbio 700 Control System
- Cutting Edge Technologies Precedent Features Reliable Compressors, Reliatel® Controls and Computer Aided Run Testing to Ensure Your Systems Provide the Best Quality and Meet Your Long-Term Comfort Needs; Reliable Comfort, Great Quality Precedent Provides the Highest Standards in Quality, Reliability, Comfort, Ease of Service and Customer Satisfaction to Meet Your Light Commercial Needs; Sophisticated Control and Flexibility Customized for Your Needs, Electromechanical Controls are Available for Simpler Applications and Reliatel® Microprocessor Controls Ensure Ease of Use for More Sophisticated Applications; Efficient Performance Complete Line of Packaged Rooftop Products with Microelectronic Unit Controls, Reliatel® Platform Features, Excellent Designs and Top-Tier Performance Requirements All at a Great Value; Weather Resistant Pre-Painted Metal with Galvanized Substrate; Removable Single Side Maintenance Access Panels; Lifting Handles in Maintenance Access Panels; Exposed Vertical Panels and Top Covers in the Indoor Air Section Insulated with a Cleanable Foil-Faced, Fire-Retardant Permanent, Odorless Glass Fiber Material; Coil Guards Provides Condenser Coil Protection; Energy Star® Rated
- Packaged Rooftop Air Conditioner; Type Cooling/Low Gas Heat, Standard Efficiency, 2-Manifold Scroll Compressor, Standard Motor/Panel/Filter/Coil/Refrigeration System; Voltage Rating 208/230 Volt AC; Current Rating 16.4/9.2 Amp RLA/110/58 Amp LRA (Compressor), 3.3 Amp FLA/12.3 Amp LRA (Condenser Fan Motor), 8.8 Amp FLA/42 Amp MCA (Indoor Fan Motor); Frequency Rating 60 Hertz; Number of Phases 3; Power Rating 8.18 Kilowatt; Cooling Capacity 7.5 Ton; Temperature Control Type Thermostat; Operating Temperature 0 to 125 Deg F; Enclosure Material ASTM B117/672 Heavy Gauge Galvanized Steel; Enclosure Finish Zinc Coated; Size 88-1/8 Inch Length x 53-1/4 Inch Width x 50-7/8 Inch Height; Weight 1013 Pound; Approval UL (Canada and US), ETL; Refrigerant Type R-410A; Refrigerant Control Type Thermostatic Expansion Valve; Motor Type 1850 RPM Direct Drive/Variable Speed; Coil Type Microchannel; Connection Size 3/4 Inch (Gas Pipe); Heating Capacity 84000 to 120000 BTU/Hour (Input), 68000 to 97200 BTU/Hour (Output); Energy Efficiency 11 EER/14.6 IEER; Air Flow Rating 2475 CFM; Furnished Filter Type Throwaway; Number of Rows 1; Fins per Inch 23; Noise Level 86 Decibel; Includes Symbio 700 Control System; Application Light Commercial, Retail, Restaurant, Church and Office; Applicable Standard AHRI 210-240, ANSI Z21.47
- Brand
American Standard Heating & Air Conditioning
ApprovalUL (Canada and US), ETL
Cooling Capacity7.5 Ton
Enclosure FinishZinc Coated
Enclosure MaterialASTM B117/672 Heavy Gauge Galvanized Steel
Frequency Rating60 Hertz
Number of Phases3
Operating Temperature0 to 125 Deg F
Power Rating8.18 Kilowatt
Size88-1/8 Inch Length x 53-1/4 Inch Width x 50-7/8 Inch Height
Temperature Control TypeThermostat
TypeCooling/Low Gas Heat, Standard Efficiency, 2-Manifold Scroll Compressor, Standard Motor/Panel/Filter/Coil/Refrigeration System
Voltage Rating208/230 Volt AC
Weight1013 Pound
