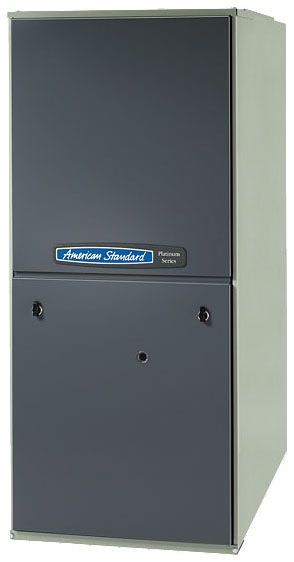

Part #AUHMB080ACV3VB
MFG #AUHMB080ACV3VB
Product Description
80000 BTU/Hr Input, 76000 BTU/Hr Output, 3 Ton, 115 VAC 60 Hz 1-Phase, 6.4 A FLA, 1/2 HP, 97/96.2% AFUE, Variable Speed Motor, 3-Stage, Upflow/Horizontal Left, Direct/Non-Direct Vent, Variable Speed, Modulating, Natural Gas Furnace
Part #AUHMB080ACV3VB
MFG #AUHMB080ACV3VB
Product Description
80000 BTU/Hr Input, 76000 BTU/Hr Output, 3 Ton, 115 VAC 60 Hz 1-Phase, 6.4 A FLA, 1/2 HP, 97/96.2% AFUE, Variable Speed Motor, 3-Stage, Upflow/Horizontal Left, Direct/Non-Direct Vent, Variable Speed, Modulating, Natural Gas Furnace
- The High Efficiency Gas Furnaces Utilize an Adaptive Heat up Silicon Nitride Hot Surface Ignition System Which Eliminates the Waste of a Constant Burning Pilot; The Integrated System Control Lights the Main Burners Upon a Demand for Heat from the Room Thermostat; Low Energy Power Venter; Vent Proving Pressure Switch; The Modulating Gas Valve Provides Longer Heating Cycles for More Consistent Heating Comfort; Communicating Furnace Design, Offers Plug and Play Walk Away Installation; Energy Star® Rated
- Gas Furnace; Type 3-Stage, Upflow/Horizontal Left, Direct/Non-Direct Vent, Variable Speed, Modulating; Btu per Hour 80000 (Input), 76000 (Output); Capacity 1084 to 1595 CFM at 0.1 Inch WG (Heating), 816 to 1321 CFM at 0.1 Inch WG (Cooling); Vent Size 2 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge Aluminized Steel Heat Exchanger, Heavy Gauge Steel/Wrap Around Cabinet; Voltage Rating 115 Volt AC 60 Hertz 1-Phase (Blower Drive), 115 Volt AC 60 Hertz 3-Phase (Combustion Fan); Current Rating 6.4 Amp FLA (Blower Drive), 1 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 1/2 HP (Blower Drive), 1/50 HP (Combustion Fan); Nominal Cooling Capacity 3 Ton; Motor Type Variable Speed Motor; Fuel Type Natural Gas; Blower Dimension 10 Inch Diameter x 8 Inch Width; Motor Speed Rating 5000 RPM (Combustion Fan); Number of Burner 4; Pipe Connection Size 1/2 Inch; AFUE Rating 97/96.2 Percent; Temperature Rating 35 to 65 Deg F; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3
- Brand
AMERICAN STANDARD
BTU Input80k
Capacity1084 to 1595 CFM at 0.1 Inch WG (Heating), 816 to 1321 CFM at 0.1 Inch WG (Cooling)
Efficiency90% +
FamilyAUHM-Modulating
OrientationMulti-Position
Type3-Stage, Upflow/Horizontal Left, Direct/Non-Direct Vent, Variable Speed, Modulating
Vent Size2 Inch Diameter
