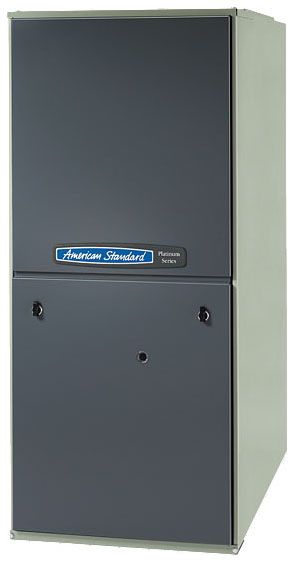

Part #AUHMD120ACV5VB
MFG #AUHMD120ACV5VB
Product Description
120000 BTU/Hr Input, 114000 BTU/Hr Output, 5 Ton, 115 VAC 60 Hz 1-Phase, 10 A FLA, 1 HP, 97/96.2% AFUE, Variable Speed Motor, 3-Stage, Upflow/Horizontal Left, Direct/Non-Direct Vent, Variable Speed, Modulating, Natural Gas Furnace
Part #AUHMD120ACV5VB
MFG #AUHMD120ACV5VB
Product Description
120000 BTU/Hr Input, 114000 BTU/Hr Output, 5 Ton, 115 VAC 60 Hz 1-Phase, 10 A FLA, 1 HP, 97/96.2% AFUE, Variable Speed Motor, 3-Stage, Upflow/Horizontal Left, Direct/Non-Direct Vent, Variable Speed, Modulating, Natural Gas Furnace
- The High Efficiency Gas Furnaces Utilize an Adaptive Heat up Silicon Nitride Hot Surface Ignition System Which Eliminates the Waste of a Constant Burning Pilot; The Integrated System Control Lights the Main Burners Upon a Demand for Heat from the Room Thermostat; Low Energy Power Venter; Vent Proving Pressure Switch; The Modulating Gas Valve Provides Longer Heating Cycles for More Consistent Heating Comfort; Communicating Furnace Design, Offers Plug and Play Walk Away Installation; Energy Star® Rated
- Gas Furnace; Type 3-Stage, Upflow/Horizontal Left, Direct/Non-Direct Vent, Variable Speed, Modulating; Btu per Hour 120000 (Input), 114000 (Output); Capacity 1699 to 2004 CFM at 0.1 Inch WG (Heating), 1444 to 2259 CFM at 0.1 Inch WG (Cooling); Vent Size 3 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge Aluminized Steel Heat Exchanger, Heavy Gauge Steel/Wrap Around Cabinet; Voltage Rating 115 Volt AC 60 Hertz 1-Phase (Blower Drive), 115 Volt AC 60 Hertz 3-Phase (Combustion Fan); Current Rating 10 Amp FLA (Blower Drive), 1 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 1 HP (Blower Drive), 1/50 HP (Combustion Fan); Nominal Cooling Capacity 5 Ton; Motor Type Variable Speed Motor; Fuel Type Natural Gas; Blower Dimension 10 Inch Diameter x 10 Inch Width; Motor Speed Rating 5000 RPM (Combustion Fan); Number of Burner 6; Pipe Connection Size 1/2 Inch; AFUE Rating 97/96.2 Percent; Temperature Rating 40 to 70 Deg F; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3
- Brand
AMERICAN STANDARD
BTU Input120k
Capacity1699 to 2004 CFM at 0.1 Inch WG (Heating), 1444 to 2259 CFM at 0.1 Inch WG (Cooling)
Efficiency90% +
FamilyAUHM-Modulating
OrientationMulti-Position
Type3-Stage, Upflow/Horizontal Left, Direct/Non-Direct Vent, Variable Speed, Modulating
Vent Size3 Inch Diameter
