Part #PSB5D
MFG #PSB-5D
Product Description

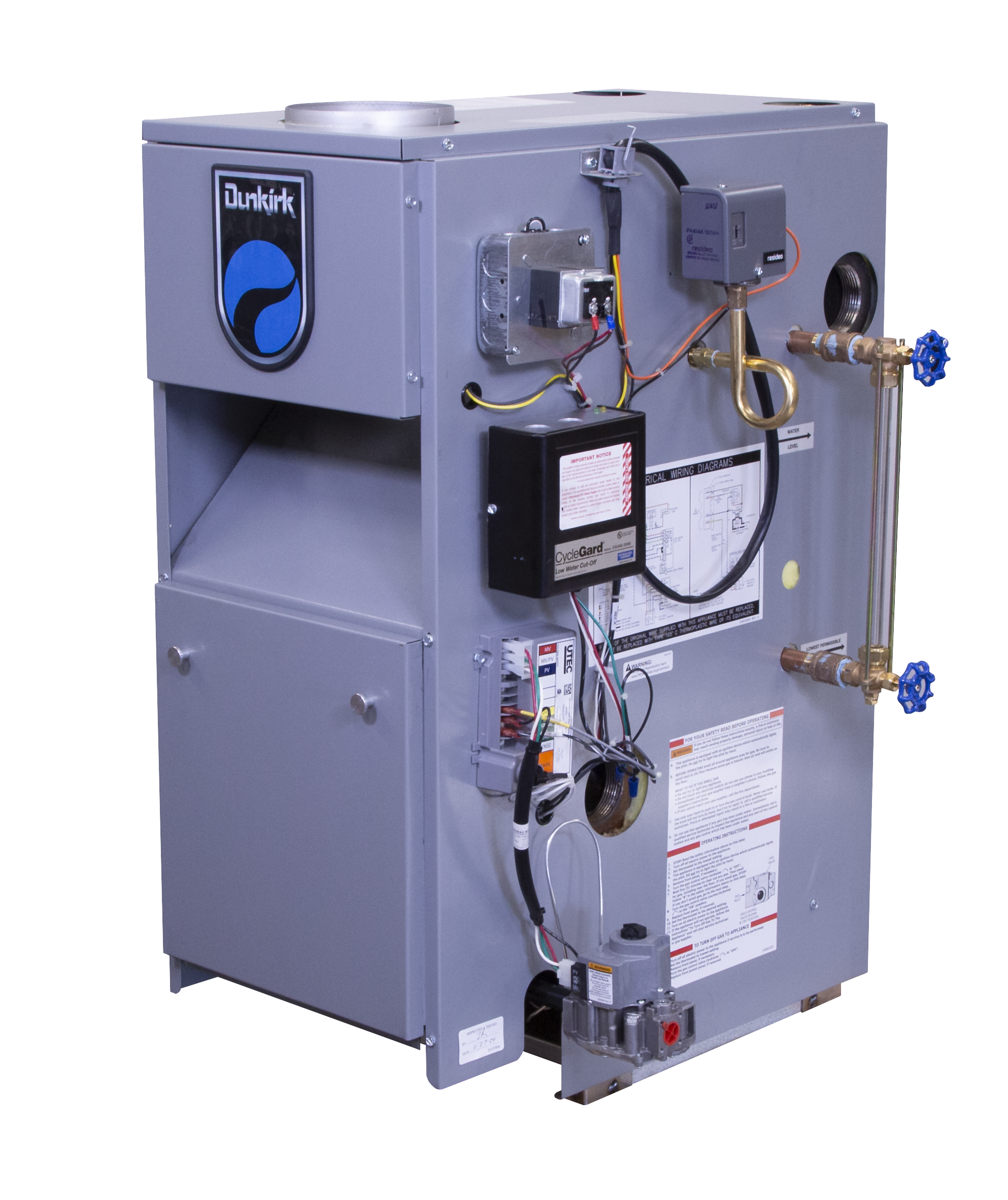

17-3/4" x 26.5" x 36.375", 150000 BTU/Hr Input, 5 Gallon, 120 VAC 60 Hz 1-Phase, 12 A, 2-1/2" NPT Supply/Return, 82% AFUE, Cast Iron, Electronic Ignition, Titanium Burner, Vertical/Chimney Vent, Natural Gas-Fired Steam Boiler
Part #PSB5D
MFG #PSB-5D
Product Description
17-3/4" x 26.5" x 36.375", 150000 BTU/Hr Input, 5 Gallon, 120 VAC 60 Hz 1-Phase, 12 A, 2-1/2" NPT Supply/Return, 82% AFUE, Cast Iron, Electronic Ignition, Titanium Burner, Vertical/Chimney Vent, Natural Gas-Fired Steam Boiler
- High Efficiency Lanced Fin Design; No Hassle 5 Year Warranty; R-22, R-410A, AC and Heat Pump Compatible; All Coils have Durable Packaging with Bar Coded Labels on the Box; UV Resistant Drain Pans are Molded of High Temperature (450 Deg F) Engineered Polymer; Dual 3/4 Inch FPT Condensate Drains On Front-Left and Front-Right Side Of Drain Pans; Patented Hydrotec Low Water Retention Drain Pan; Copper Refrigerant Connections for Easy Brazing on Both Copper and Aluminum Slab Models; Intertek Lab Tested 1% or Less Cabinet Air Leakage for Better Efficiency; Cased Coil Cabinets are Fully Lined with 5/8 Inch Foil Faced Insulation; Optional Painted or Embossed Galvanized Steel Cabinets; Short Cabinet with Easy Access; Non-captive Refrigerant Lines with Long Stubs Make for Easy Installation; Enhanced Refrigerant Pipe Grommets Secure, Tight and Easy to Install; Copper Distributor Tube Assembly Provides Brass to Brass Threads For Trouble-Free Service of TXV; Made in USA
- Gas-Fired Steam Boiler; Type Steam; Supply Connection 2-1/2 Inch Threaded; Return Connection 2-1/2 Inch Threaded; Gas Type Natural; Gas Connection 1/2 Inch Threaded; AGA Input Rating 150000 BTU/Hour; DOE Heating Capacity 122000 BTU/Hour; Net IBR Rating 92000 BTU/Hour; AFUE Rating 82 Percent; Boiler Dimensions 17-3/4 Inch Width x 26.5 Inch Depth x 36.375 Inch Height; Boiler Material Cast Iron; Water Content 5 Gallon; Ignition Type Electronic; Burner Type Titanium; Venting Type Vertical/Chimney; Vent Size 6 Inch; Relief Valve Details 15 PSI ASME Pop Safety Valve; Warranty 12 Year Limited (Heat Exchanger); Options Electronic Water Feeder, Natural Gas to Propane Conversion Kit; Inclusions/Features Cast Iron Push Nipple; Applicable Standard CSA, ASME, AHRI; Voltage Rating 120 Volt AC 60 Hertz 1-Phase, 24 Volt (Transformer); Current Rating Less than 12 Amp; Combustion Type Atmospheric
- Brand
Dunkirk
AFUE Rating82 Percent
AGA Input Rating150000 BTU/Hour
Boiler Dimensions17-3/4 Inch Width x 26.5 Inch Depth x 36.375 Inch Height
Boiler MaterialCast Iron
Burner TypeTitanium
DOE Heating Capacity122000 BTU/Hour
Gas Connection1/2 Inch Threaded
Gas TypeNatural
Ignition TypeElectronic
Net IBR Rating92000 BTU/Hour
Relief Valve Details15 PSI ASME Pop Safety Valve
Return Connection2-1/2 Inch Threaded
Supply Connection2-1/2 Inch Threaded
TypeSteam
Venting TypeVertical/Chimney
Vent Size6 Inch
Warranty12 Year Limited (Heat Exchanger)
Water Content5 Gallon
