Part #RSH50VRMDC
Product Description
120/240 VAC 1-Phase, 50 kA, 60 A, 2-Pole, 0.5 to 60 Sec Delay, NEMA 3R, IP66, Adjustable Auto Cut-Off, SPD, Surge Protector
Part #RSH50VRMDC
Product Description
120/240 VAC 1-Phase, 50 kA, 60 A, 2-Pole, 0.5 to 60 Sec Delay, NEMA 3R, IP66, Adjustable Auto Cut-Off, SPD, Surge Protector

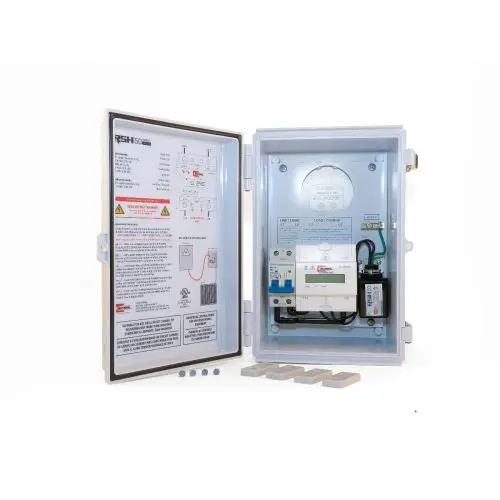

- RSH-50 Surge Protector, Voltage Range Monitor and 60A Disconnect Breaker Inside a NEMA 3R/IP66 Enclosure; Over-Under Voltage Protection with Adjustable Auto Cut-Off and Auto Restore Delay Time; Over-Under Voltage Cutoff Delay Can be Adjusted from 0.5 to 60 Seconds; Load Restore Delay Adjustable from 1 to 600 Seconds 120/240 Single Phase; Magnetic Latching Relays for Maximum Reliability; Large Easy to Read LCD Digital Display with Dual Red and Green LED Diagnostics Indicators; Easy Set up, Field Programmable, No Laptop or Programming Tool Required
- Surge Protector; Type Adjustable Auto Cut-Off, SPD; Voltage Rating 120/240 Volt AC; Input Current 60 Amp; Circuit Configuration 1-Phase 2-Pole; Surge Current per Phase 50 Kiloamp; Enclosure NEMA 3R/IP66; Application Protects Single Phase Equipment from Electrical Surges, Voltage Disturbances by Utilizing Safety Thermal Fusing, Gas Discharge Tube Surge Protection Technology; Approval CSA (Canada and US), ETL (Canada and US); RoHS Compliant; Impulse Voltage 2.5 Kilo Volt; Delay 0.5 to 60 Second
- Brand
RSH
ApprovalCSA (Canada and US), ETL (Canada and US)
Circuit Configuration1-Phase 2-Pole
EnclosureNEMA 3R/IP66
Input Current60 Amp
Surge Current per Phase50 Kiloamp
TypeAdjustable Auto Cut-Off, SPD
Voltage Rating120/240 Volt AC
