Part #S8V2C100M5PCAA
MFG #S8V2C100M5PCAA
Product Description

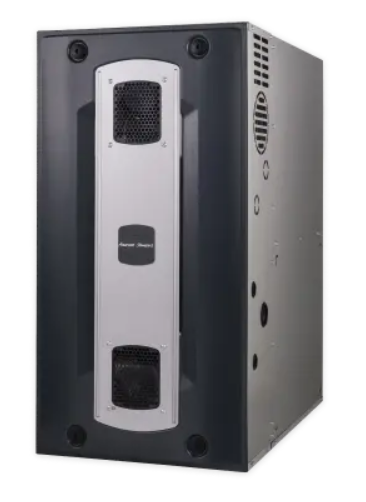

21" x 28.75" x 34", 100000 BTU/Hr Input, 81200 BTU/Hr Output, 120 VAC 60 Hz 1-Phase, 13 A, 1 HP, 80% AFUE, 1800 CFM, Permanent Split Capacitor, Variable Speed, 2-Stage, Upflow/Downflow/Horizontal Left/Right, Natural/Liquid Propane Gas-Fired Induced Draft Furnace
Part #S8V2C100M5PCAA
MFG #S8V2C100M5PCAA
Product Description
21" x 28.75" x 34", 100000 BTU/Hr Input, 81200 BTU/Hr Output, 120 VAC 60 Hz 1-Phase, 13 A, 1 HP, 80% AFUE, 1800 CFM, Permanent Split Capacitor, Variable Speed, 2-Stage, Upflow/Downflow/Horizontal Left/Right, Natural/Liquid Propane Gas-Fired Induced Draft Furnace
- Two-Speed Draft Inducer Works Seamlessly with the Two-Stage Gas Valve to Enhance Efficiency, Comfort and Reliability; Durable Hot Surface Igniter Starts Burner Electronically for Safe, Efficient Operation, this Eliminates the Need for a Fuel-Burning Pilot Light; Multi-Port In-Shot Burners Perfectly Shape the Flame Cone to Maximize Heating While Using Less Fuel; American Standard Link Communicating Capability Creates a Seamless Connection Between System Components to Monitor System Performance and Efficiency Helping Deliver Optimal Comfort; Aluminized Steel Heat Exchanger has a Reliable Design that Resists Corrosion, Efficiently Transfers Heat; Two Stage Gas Valve Results in Greater Efficiency by Using Just the Right Amount of Fuel for Each Stage, Providing More Comfort with Lower, Longer Run Times and Reduced Temperature Swings; High Efficiency Variable Speed Blower Motor Quietly Distributes Heat Throughout Your Home While Carefully Controlling Humidity Levels by Utilizing Comfort-R Technology to Regulate Airspeed; Vortica™ II Blower Designed Exclusively for American Standard and Performs Quietly and Efficiently in Both Heating Season and Cooling Season
- Gas-Fired Induced Draft Furnace; Type 2-Stage, Upflow/Downflow/Horizontal Left/Right; Btu per Hour 65000 Input/52300 Output (1-Stage), 100000 Input/81200 Output (2-Stage); Capacity 1296 CFM (1-Stage), 1800 CFM (2-Stage); Control Type Thermostat; Size 21 Inch Width x 28.75 Inch Depth x 34 Inch Height; Gas Inlet Size 1/2 Inch; Vent Size 4 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, 120 Volt Silicon Nitride Igniter Pilot Safety Device, Aluminized Steel Heat Exchanger, Heavy Gauge Steel Cabinet; Voltage Rating 120 Volt AC 60 Hertz 1-Phase; Current Rating 13 Amp (Maximum), 10 Amp FLA (Blower Drive), 0.33 Amp FLA (Combustion Fan), 15 Amp (MOP/Fuse); Motor Power Rating 1 HP (Blower Drive); Motor Type Permanent Split Capacitor, Variable Speed; Fuel Type Natural Gas/Liquid Propane Gas; Blower Dimension 11 Inch Diameter x 11 Inch Width; Motor Speed Rating 3200/2900 RPM; Vent Type Round; Number of Burners 5; Pipe Connection Size 1/2 Inch; AFUE Rating 80 Percent; Temperature Rating 25 to 55 Deg F (1-Stage), 30 to 60 Deg F (2-Stage); Applicable Standard ETL (Canada and US), ANSI Z21.47/NFPA 54
- Brand
AMERICAN STANDARD
BTU Input100k
Capacity1296 CFM (1-Stage), 1800 CFM (2-Stage)
Efficiency80% +
FamilyS8V2-VS
OrientationMulti-Position
Size21 Inch Width x 28.75 Inch Depth x 34 Inch Height
Vent Size4 Inch Diameter
