Part #S8X2D120M5PSAA
MFG #S8X2D120M5PSAA
Product Description

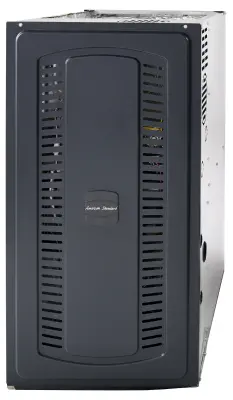

24.5" x 28.75" x 34", 120000 BTU/Hr, 5 Ton, 120 VAC 60 Hz 1-Phase, 10.9 A FLA, 1 HP, 80% AFUE, Constant Torque ECM Motor, 2-Stage, Non-Condensing, Serial Controlled, Upflow/Downflow/Horizontal Left/Right, Multi-Position, Natural Gas Furnace
Part #S8X2D120M5PSAA
MFG #S8X2D120M5PSAA
Product Description
24.5" x 28.75" x 34", 120000 BTU/Hr, 5 Ton, 120 VAC 60 Hz 1-Phase, 10.9 A FLA, 1 HP, 80% AFUE, Constant Torque ECM Motor, 2-Stage, Non-Condensing, Serial Controlled, Upflow/Downflow/Horizontal Left/Right, Multi-Position, Natural Gas Furnace
- Cabinet has No Knockouts - Plastic Plugs Come Installed from Factory; Gas Can Enter Either Side of Cabinet; Multiple Venting Options - Every Model, Every Size Offers Two Venting Options; New Integrated Furnace Control Board with Digital Configuration, Status, and Fault Codes; Improved Alpha Numeric Diagnostic Codes; Dry Contact Humidifier/Eac Hook-Up Capability; Adjustable Blower Off Delay for Heating and Cooling; Aluminized Heat Exchanger Tubes; Longer IFC Wire Harnesses Allow Door to be Removed without Disconnecting the Harness; Direct Drive, 9 Speed Constant Torque ECM Blower Motor; Manual Reset Flame Roll Out Switches; Multi-Port in Shot Burners; Low Energy Power Venter; Vent Proving Pressure Switches; Energy Star® Rated
- Gas Furnace; Type 2-Stage, Non-Condensing, Serial Controlled, Upflow/Downflow/Horizontal Left/Right, Multi-Position; Btu per Hour 84000 (Input)/67200 (Output) 1-Stage, 120000 (Input)/96000 (Output) 2-Stage; Capacity 857 to 2639 CFM at 0.1 Inch WG; Size 24.5 Inch Width x 28.75 Inch Depth x 34 Inch Height; Vent Size 4 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, Multi-Port Inshot Burner, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge Aluminized Steel Heat Exchanger, Heavy Gauge Steel/Wrap Around Cabinet; Voltage Rating 120 Volt AC 60 Hertz 1-Phase; Current Rating 10.9 Amp FLA (Blower Drive), 0.66 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 1 HP (Blower Drive); Nominal Cooling Capacity 5 Ton; Motor Type Constant Torque ECM; Fuel Type Natural Gas; Blower Dimension 11 Inch Diameter x 11 Inch Width; Number of Speed 9; Motor Speed Rating 1075 RPM (Blower Drive), 3300/2600 RPM (Combustion Fan); Vent Type Round; Number of Burner 6; Pipe Connection Size 1/2 Inch; AFUE Rating 80 Percent (Non-Condensing); Temperature Rating 30 to 60 Deg F; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3, ASHRAE 193
- Brand
AMERICAN STANDARD
BTU Input120k
Capacity857 to 2639 CFM at 0.1 Inch WG
Efficiency80% +
FamilyS8X2-ECM
OrientationMulti-Position
Size24.5 Inch Width x 28.75 Inch Depth x 34 Inch Height
Type2-Stage, Non-Condensing, Serial Controlled, Upflow/Downflow/Horizontal Left/Right, Multi-Position
Vent Size4 Inch Diameter
