Part #S9V2B080D4PSBB
MFG #S9V2B080D4PSBB
Product Description

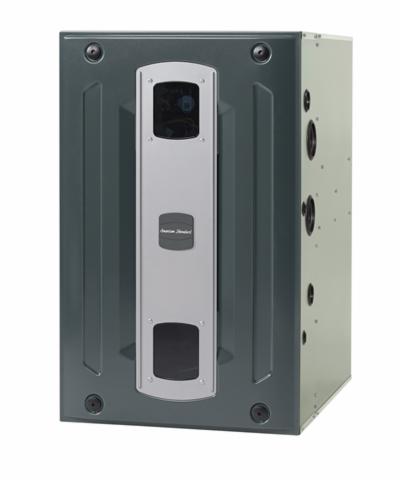

17-1/2" x 28-3/4" x 34", 80000 BTU/Hr, 4 Ton, 120 VAC 60 Hz 1-Phase, 8 A FLA, 3/4 HP, 96% AFUE, Constant Torque ECM Motor, PSC Inducer, 2-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, Variable Speed, Dedicated Downflow, Natural/Liquid Propane Gas Furnace
Part #S9V2B080D4PSBB
MFG #S9V2B080D4PSBB
Product Description
17-1/2" x 28-3/4" x 34", 80000 BTU/Hr, 4 Ton, 120 VAC 60 Hz 1-Phase, 8 A FLA, 3/4 HP, 96% AFUE, Constant Torque ECM Motor, PSC Inducer, 2-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, Variable Speed, Dedicated Downflow, Natural/Liquid Propane Gas Furnace
- Industry Leading Efficiency; Groundbreaking Structural Design; Quick and Quiet; Comfort-R™ Enhanced Mode (Cooling); Front Service Access with Easily Accessible Burners, Sensors, Orifices, Switches and Other Components; Cabinet has No Knockouts Rubber and Plastic Plugs Come Installed from Factory; Gas Can Enter Either Side of Cabinet; Condensate Can Exit Either Side of Cabinet in Upflow Orientation; Integrated Furnace Control Board with Digital Configuration, Status and Fault Codes; Dry Contact Humidifier/EAC Hook-Up Capability; Adjustable Blower Off Delay for Heating and Cooling; Stainless Steel Primary and Secondary Heat Exchanger Tubes; Longer IFC Wire Harnesses Allow Door to be Removed without Disconnecting the Harness; Gasketed Inner and Outer Door; Insulated Blower Compartment; Left/Right Condensate Drain Capability in Vertical Application; Service Diagnostics with Faults Reported on IFC Board; Manual Reset Flame Roll Out Switches; Painted Cabinet Two Tone Color; Service Diagnostic Capabilities; Vortica™ II Blower Housing; Slide Out Blower Assembly on Full Length Rails; Integrated System Control is a Solid State Device Which Continuously Monitors for Presence of Flame When the System is in the Heating Mode of Operation; Durable, Cycle Tested, Heavy Gauge Tubular Stainless Steel Heat Exchanger Quickly Transfers Heat to Provide Warm Conditioned Air to the Structure; Low Energy Power Vent Blower to Increase Efficiency and Provide a Discharge of Gas Fumes to the Outside; Multiport, Inshot Burners will Give Years of Quiet and Efficient Service; Energy Efficient Operation; Energy Star® Rated
- Gas Furnace; Type 2-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, Variable Speed, Dedicated Downflow; Btu per Hour 52000 (Input)/50440 (Output) 1-Stage, 80000 (Input)/77600 (Output) 2-Stage; Capacity 1082 to 1227 CFM at 0.1 Inch WG (Heating), 1160 to 1800 CFM at 0.1 Inch WG (Cooling); Size 17-1/2 Inch Width x 28-3/4 Inch Depth x 34 Inch Height; Vent Size 2 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, Multi-Port Inshot Burner, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge Stainless Steel Heat Exchanger, Heavy Gauge Steel/Wrap Around Cabinet; Voltage Rating 120 Volt AC 60 Hertz 1-Phase; Current Rating 8 Amp FLA (Blower Drive), 0.66 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 3/4 HP (Blower Drive); Nominal Cooling Capacity 4 Ton; Motor Type Constant Torque ECM; Inducer Type PSC; Fuel Type Natural/Liquid Propane Gas; Blower Dimension 11 Inch Diameter x 8 Inch Width; Motor Speed Rating 3300/2600 RPM (Combustion Fan); Number of Burner 4; Pipe Connection Size 1/2 Inch; AFUE Rating 96 Percent; Communicating Capability 24 Volt; Temperature Rating 35 to 65 Deg F; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3, ASHRAE 193
- Brand
AMERICAN STANDARD
BTU Input80k
Capacity1082 to 1227 CFM at 0.1 Inch WG (Heating), 1160 to 1800 CFM at 0.1 Inch WG (Cooling)
Efficiency90% +
FamilyS9V2-ECM
OrientationDownflow
Size17-1/2 Inch Width x 28-3/4 Inch Depth x 34 Inch Height
Type2-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, Variable Speed, Dedicated Downflow
Vent Size2 Inch Diameter
