Part #S9X1B060D3PSBA
MFG #S9X1B060D3PSBA
Product Description

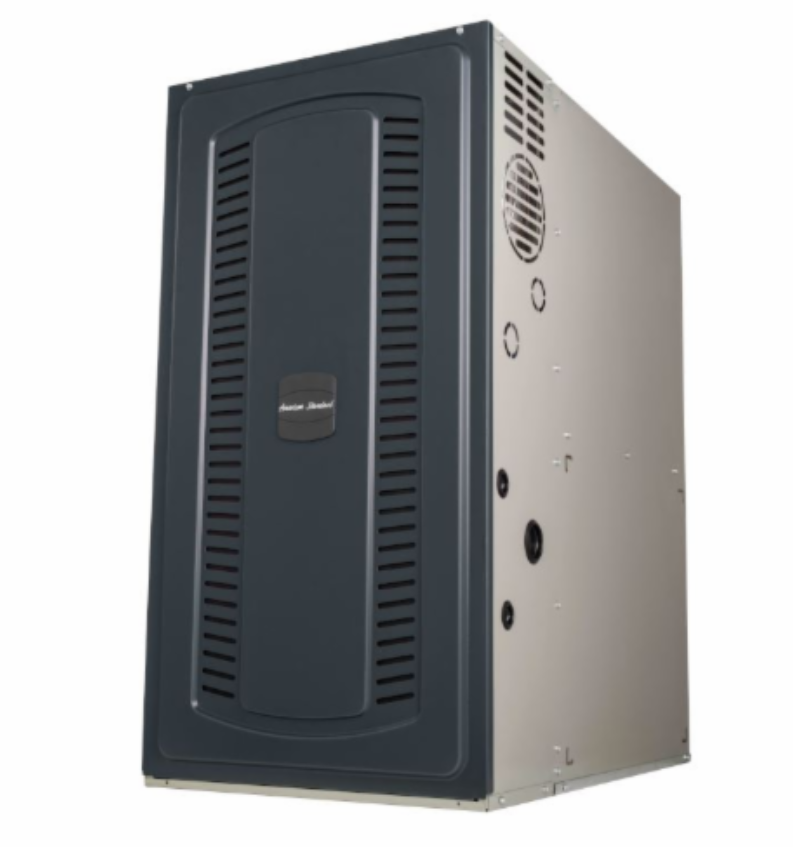

17-1/2" x 28-3/4" x 34", 60000 BTU/Hr Input, 57600 BTU/Hr Output, 3 Ton, 120 VAC 60 Hz 1-Phase, 6.4 A FLA, 1/2 HP, 96% AFUE, Constant Torque ECM Motor, PSC Inducer, 1-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, High Efficiency, Variable Speed, Dedicated Downflow, Natural/Liquid Propane Gas Furnace
Part #S9X1B060D3PSBA
MFG #S9X1B060D3PSBA
Product Description
17-1/2" x 28-3/4" x 34", 60000 BTU/Hr Input, 57600 BTU/Hr Output, 3 Ton, 120 VAC 60 Hz 1-Phase, 6.4 A FLA, 1/2 HP, 96% AFUE, Constant Torque ECM Motor, PSC Inducer, 1-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, High Efficiency, Variable Speed, Dedicated Downflow, Natural/Liquid Propane Gas Furnace
- Designed for Efficiency; Built for Affordability; Dry Contact Humidifier/EAC Hook-Up Capability; Insulated Blower Compartment; Meets Requirements for 1% or Less Air Leakage; Front Service Access with Easily Accessible Burners, Sensors, Orifices, Switches and Other Component; Cabinet has No Knockouts - Rubber and Plastic Plugs Come Installed from Factory; Gas Can Enter Either Side of Cabinet; Integrated Furnace Control Board with Digital Configuration, Status and Fault Codes; Adjustable Blower Off Delay for Heating and Cooling; Stainless Steel Primary and Secondary Heat Exchanger Tubes; Gasketed Inner and Outer Door; Left/Right Condensate Drain Capability in Vertical Application; Service Diagnostics with Faults Reported on IFC Board; Service Diagnostic Capabilities; Vortica™ II Blower Housing; Dual Solenoid Combination Gas Valve and Regulator Provide Additional Safety; Durable, Cycle Tested, Heavy Gauge Tubular Stainless Steel Heat Exchanger Quickly Transfers Heat to Provide Warm Conditioned Air to the Structure; Low Energy Power Vent Blower to Increase Efficiency and Provide a Discharge of Gas Fumes to the Outside; Multiport, Inshot Burners will Give Years of Quiet and Efficient Service; Exclusively Designed Operational Program Provides Total Control of Furnace Limit Sensors, Blowers, Gas Valve, Flame Control and Includes Self Diagnostics for Ease of Service; Energy Efficient Operation; Energy Star® Rated
- Gas Furnace; Type 1-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, High Efficiency, Variable Speed, Dedicated Downflow; Btu per Hour 60000 (Input), 57600 (Output); Capacity 624 to 1504 SCFM at 0.1 Inch WC; Size 17-1/2 Inch Width x 28-3/4 Inch Depth x 34 Inch Height; Vent Size 2 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, Multi-Port Inshot Burner, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge Stainless Steel Heat Exchanger, Heavy Gauge Steel/Wrap Around Cabinet; Voltage Rating 120 Volt AC 60 Hertz 1-Phase; Current Rating 6.4 Amp FLA (Blower Drive), 2.14 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 1/2 HP (Blower Drive); Nominal Cooling Capacity 3 Ton; Motor Type Constant Torque ECM; Inducer Type PSC; Fuel Type Natural/Liquid Propane Gas; Blower Dimension 11 Inch Diameter x 8 Inch Width; Number of Speed 9; Motor Speed Rating 1075 RPM (Blower Drive), 3300 RPM (Combustion Fan); Number of Burner 3; Pipe Connection Size 1/2 Inch; AFUE Rating 96 Percent; Communicating Capability 24 Volt; Temperature Rating 35 to 65 Deg F; Application Indoor; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3, ASHRAE 193
- Brand
AMERICAN STANDARD
BTU Input60k
Capacity624 to 1504 SCFM at 0.1 Inch WC
Efficiency90% +
FamilyS9X1-ECM
OrientationDownflow
Size17-1/2 Inch Width x 28-3/4 Inch Depth x 34 Inch Height
Type1-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, High Efficiency, Variable Speed, Dedicated Downflow
Vent Size2 Inch Diameter
