Part #S9X2C100U5PSBA
MFG #S9X2C100U5PSBA
Product Description

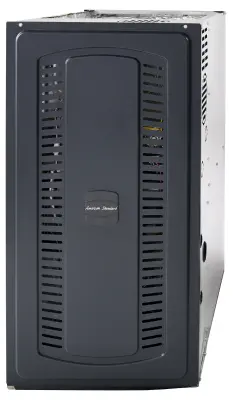

21" x 28-3/4" x 34", 100000 BTU/Hr, 5 Ton, 120 VAC 60 Hz 1-Phase, 10 A FLA, 1 HP, 96% AFUE, Constant Torque ECM Motor, PSC Inducer, 2-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, High Efficiency, Variable Speed, Upflow, 3-Way, Horizontal Left/Right, Natural/Liquid Propane Gas Furnace
Part #S9X2C100U5PSBA
MFG #S9X2C100U5PSBA
Product Description
21" x 28-3/4" x 34", 100000 BTU/Hr, 5 Ton, 120 VAC 60 Hz 1-Phase, 10 A FLA, 1 HP, 96% AFUE, Constant Torque ECM Motor, PSC Inducer, 2-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, High Efficiency, Variable Speed, Upflow, 3-Way, Horizontal Left/Right, Natural/Liquid Propane Gas Furnace
- Twice the Precision; Fuel Efficient Design; Steady Warm Air; Front Service Access with Easily Accessible Burners, Sensors, Orifices, Switches and Other Component; Cabinet has No Knockouts - Rubber and Plastic Plugs Come Installed from Factory; Gas Can Enter Either Side of Cabinet; Integrated Furnace Control Board with Digital Configuration, Status and Fault Codes; Durable, Cycle Tested, Heavy Gauge Tubular Stainless Steel Heat Exchanger Quickly Transfers Heat to Provide Warm Conditioned Air to the Structure; Dry Contact Humidifier/EAC Hook-Up Capability; Adjustable Blower Off Delay for Heating and Cooling; Stainless Steel Primary and Secondary Heat Exchanger Tubes; Insulated Blower Compartment; Left/Right Condensate Drain Capability in Vertical Application; Service Diagnostics with Faults Reported on IFC Board; Vortica™ II Blower Housing; Low Energy Power Vent Blower to Increase Efficiency and Provide a Discharge of Gas Fumes to the Outside; Multiport, Inshot Burners will Give Years of Quiet and Efficient Service; Exclusively Designed Operational Program Provides Total Control of Furnace Limit Sensors, Blowers, Gas Valve, Flame Control and Includes Self Diagnostics for Ease of Service; Energy Efficient Operation; Energy Star® Rated
- Gas Furnace; Type 2-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, High Efficiency, Variable Speed, Upflow, 3-Way, Horizontal Left/Right; Btu per Hour 65000 (Input)/63050 (Output) 1-Stage, 100000 (Input)/97400 (Output) 2-Stage; Capacity 1013 to 2395 SCFM at 0.1 Inch WC; Size 21 Inch Width x 28-3/4 Inch Depth x 34 Inch Height; Vent Size 2 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, Multi-Port Inshot Burner, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge Stainless Steel Heat Exchanger, Heavy Gauge Steel/Wrap Around Cabinet; Voltage Rating 120 Volt AC 60 Hertz 1-Phase; Current Rating 10 Amp FLA (Blower Drive), 0.66 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 1 HP (Blower Drive); Nominal Cooling Capacity 5 Ton; Motor Type Constant Torque ECM; Inducer Type PSC; Fuel Type Natural/Liquid Propane Gas; Blower Dimension 11 Inch Diameter x 10 Inch Width; Number of Speed 9; Motor Speed Rating 1075 RPM (Blower Drive), 3300/2600 RPM (Combustion Fan); Number of Burner 5; Pipe Connection Size 1/2 Inch; AFUE Rating 96 Percent; Communicating Capability 24 Volt; Temperature Rating 40 to 70 Deg F; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3, ASHRAE 193
- Brand
AMERICAN STANDARD
BTU Input100k
Capacity1013 to 2395 SCFM at 0.1 Inch WC
Efficiency90% +
FamilyS9X2-ECM
OrientationMulti-Position
Size21 Inch Width x 28-3/4 Inch Depth x 34 Inch Height
Type2-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, High Efficiency, Variable Speed, Upflow, 3-Way, Horizontal Left/Right
Vent Size2 Inch Diameter
